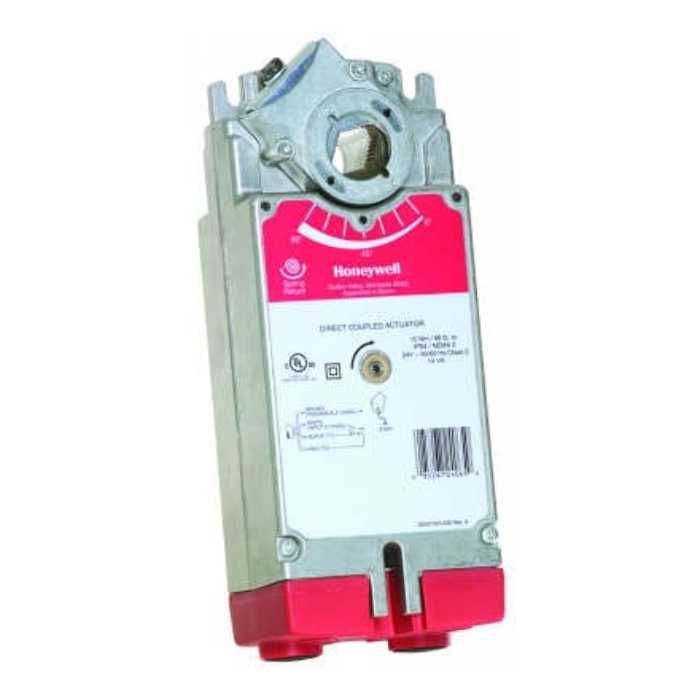

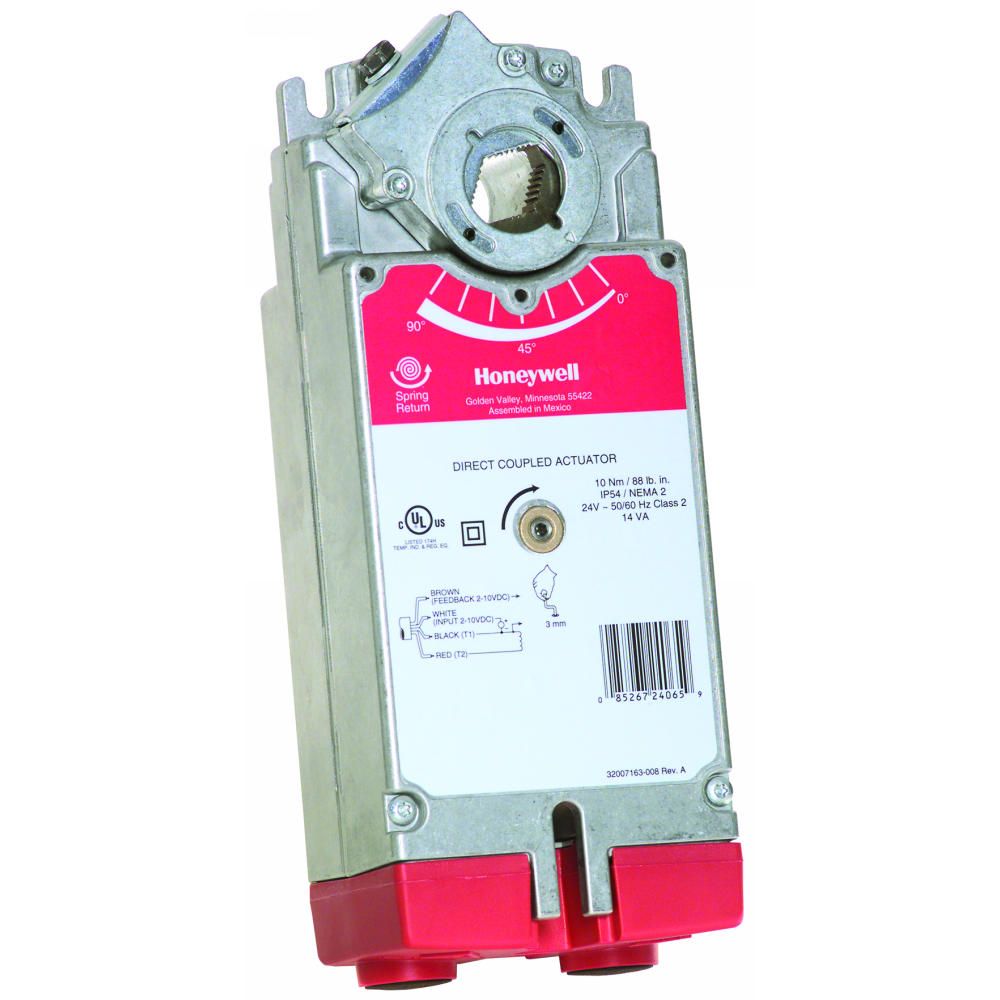

Honeywell MS3110J1008/U Direct Coupled Actuator 88 lb-in

Product Description

The Honeywell MS3110J1008/U is a direct coupled actuator designed to handle a torque of eighty-eight pound-inches. This actuator is spring return and operates on twenty-four volts AC with a fourteen VA rating. It is Sylk-enabled, making it suitable for a variety of commercial HVAC applications.

• Self-centering shaft adapter for various shaft sizes
• Metal housing with built-in mechanical end limits
• Field-selectable spring return direction

Product Highlights

Ideal for controlling dampers and enhancing building automation systems, this actuator features a manual winding capability with a locking function and is UL listed.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: MS3110J1008/U

Technical Specifications

• Power Consumption: 24 VAC
• Auxiliary Switches: Two SPDT
• Operating Temperature: -40 F To 150 F (-40 C To 65 C)
• Electrical Connections: Field Wiring 14-22 AWG To Screw Terminals, Located Under The Removable Access Cover
