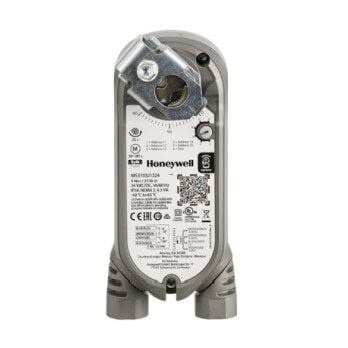

Honeywell MS3103J1224 Spring Return Communicating Sylk Direct Coupled Damper Actuator 30-180 Second No Conduit

Product Description

The Honeywell MS3103J1224 is a spring return communicating Sylk direct coupled damper actuator that offers precise and reliable performance. This actuator is designed for ease of installation, making it a suitable choice for HVAC applications. The direct-coupled design allows for straightforward integration, while the Honeywell Sylk technology ensures efficient communication and power delivery with minimal wiring.

• Torque rating of twenty-seven lb-in.
• Functional in ambient temperatures from negative forty to positive one hundred fifty degrees Fahrenheit.
• Features a fail-safe mode for reliable operation.

Product Highlights

This actuator supports up to two internal auxiliary switches and has a timing range from thirty to one hundred eighty seconds, making it versatile for various zoning applications.

Product Information

Standard Information

• Mounting: Direct Coupled
• Electrical Connections: Wired

Technical Specifications

• Frequency: 50 Hz; 60 Hz
• Control Signal: Sylk Enabled
• Torque Rating (lb-in.): 27 lb-in
• Torque Rating (Nm): 3 Nm
• Feedback: No Feedback
• Rotational Stroke Adjustment: Mechanically limited maximum stroke in 7.5 degree increments
• Nominal Timing: Driving -- 30 to 180 sec
• Spring Return Timing: 25 sec
• Auxiliary Switches: 2 internal switches
