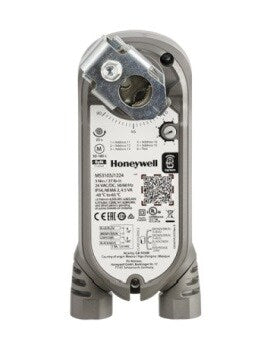

Honeywell MS3103J1222 Direct Coupled Damper Actuator

Product Description

The Honeywell MS3103J1222 is a direct-coupled damper actuator that operates on twenty-four VAC or DC. It is designed for effective damper control across various applications. This actuator features a Sylk BUS for easy communication with multiple devices and ensures accurate operational capabilities.

• Offers 27 in-lb of torque.
• Includes a SCSA shaft adapter for simple installation.
• Provides overload protection.

Product Highlights

The MS3103J1222 is an essential component in HVAC systems, offering reliable performance and durability.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: MS3103J1222

Technical Specifications

• Torque: 27 in-lb
• Input Voltage: 24 VAC ±20% @ 50/60 Hz, 24 VDC ±20%/-10%
• Power Consumption: 45 VA Driving, 2 VA Holding
• Control Signal: Communicating
• Voltage Output: 2-10 VDC, 0(2)-10 VDC, 10-0(2) VDC
• Input Impedance: 95 kOhm minimum
• Wiring: 3-foot cable, 18 AWG
• Rotation: 95° ± 3°
• Operating Temperature: -40°C - 150°C
• Operating Humidity: 5 to 95% RH
• Enclosure Rating: NEMA 2 (IP54)
• Auxiliary Switches: SPST
