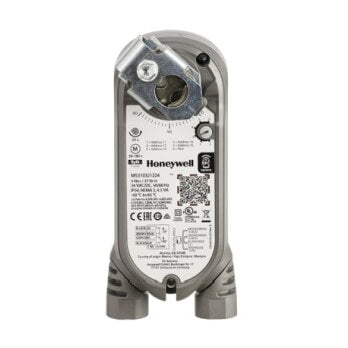

Honeywell MS3103J1024 Spring Return Communicating Sylk Direct Coupled Damper Actuator 30-180 Second No Conduit 27 lb-in

Product Description

The Honeywell MS3103J1024 is a spring return communicating Sylk direct coupled damper actuator designed for dependable operation. This actuator operates at twenty-four volts and is suitable for a range of timing specifications from thirty to one hundred eighty seconds.

• Torque rating of twenty-seven lb-in
• Spring return fail-safe mode
• Sylk technology for reduced wiring

Product Highlights

Designed for ease of installation, this damper actuator meets rigorous industry standards. The Honeywell engineering team assures reliable performance through extensive testing. Use this actuator in HVAC systems where quality and precision are crucial.

Product Information

Standard Information

• Manufacturer: Honeywell
• Minimum Quantity: 1

Technical Specifications

• Mounting: Direct Coupled
• Frequency: 50 Hz; 60 Hz
• Electrical Connections: Wired
• Ambient Temperature Range: -40 F to +150 F
• Control Signal: Sylk Enabled
• Fail Safe Mode: Spring Return
• Torque Rating (lb-in): 27 lb-in
• Rotational Stroke Adjustment: Mechanically limited maximum stroke in 7.5 degree increments
• Timing Nominal: Driving -- 30 to 180 sec
• Spring Return Timing: 25 sec
