Honeywell MP953E1435/U Pneumatic Fail-Safe Spring Return

Product Description

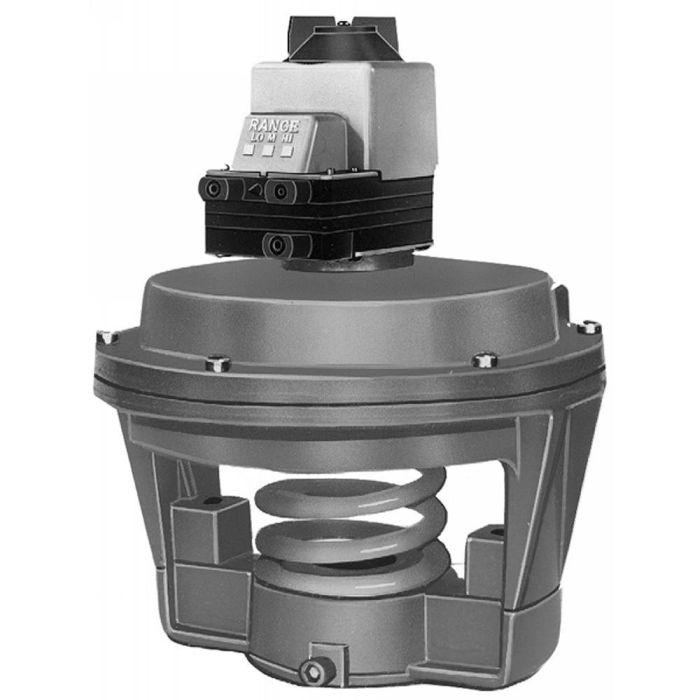

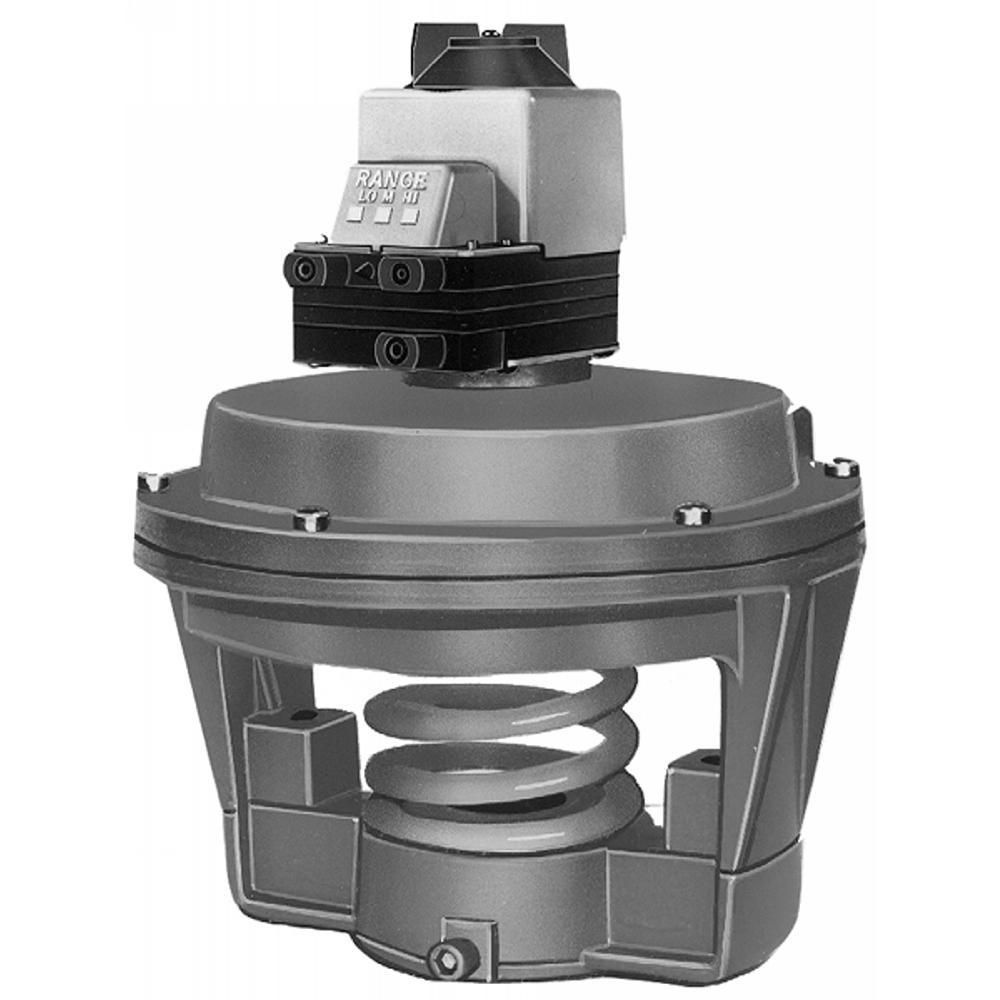

The Honeywell MP953E1435/U is a pneumatic fail-safe spring return actuator. It is designed for HVAC systems to control steam or hot and cold liquids through various valve assemblies. Its direct acting feature and spring return mechanism enhance its operational efficiency.

• Rolling diaphragm ensures durability and reduced hysteresis.
• Easily attaches to valves and can be installed post piping.
• Slide lock feature allows for simple engagement to the valve stem.

Product Highlights

This actuator offers both direct and reverse action control and includes an integral positive positioner for effective load management.

Product Information

Standard Information

• Brand: Honeywell
• Product Type: Pneumatic Actuator

Technical Specifications

• Model Number: MP953E1435/U
• Maximum Safe Operating Pressure: 25 psi
• Temperature Range: 0 F to 140 F
• Fail Safe Mode: Spring Return
• Stroke Length: 3/4 in.
• Actuator Force: High Direct Acting
• Spring Range: 4 psi to 11 psi
• Air Connections: Pilot fitting for 5/32 in. O.D. plastic tubing, Main fitting for 1/4 in. O.D. plastic tubing
