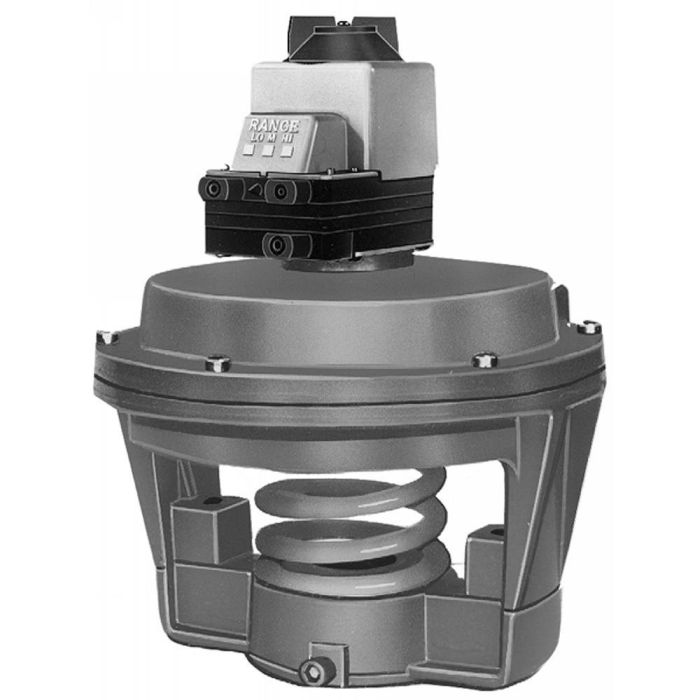

Honeywell MP953E1327/U Pneumatic Fail-Safe Spring Return

Product Description

The Honeywell MP953E1327/U is a pneumatic fail-safe spring return actuator designed for HVAC systems. This actuator operates on a pressure range of four to eleven psi, enabling precise control of steam and liquid flow in pneumatic valve systems.

• Rolling diaphragm for long life and low hysteresis
• Direct or reverse action control option
• Slide lock feature for easy installation and engagement

Product Highlights

This actuator provides reliable control in a variety of environments, offering versatility in HVAC applications.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: MP953E1327/U

Technical Specifications

• Operating Conditions: 0 F to 140 F (-18 C to 60 C)
• Diameter: 5 inches
• Height: 9 1/4 inches
• Stroke Length: 3/4 inches
• Max Operating Pressure: 25 psi
• Spring Range: 4 psi to 11 psi
• Humidity Range: 5 to 95% RH
• Application: Used with valves having a bonnet size of 1-3/8 inches
