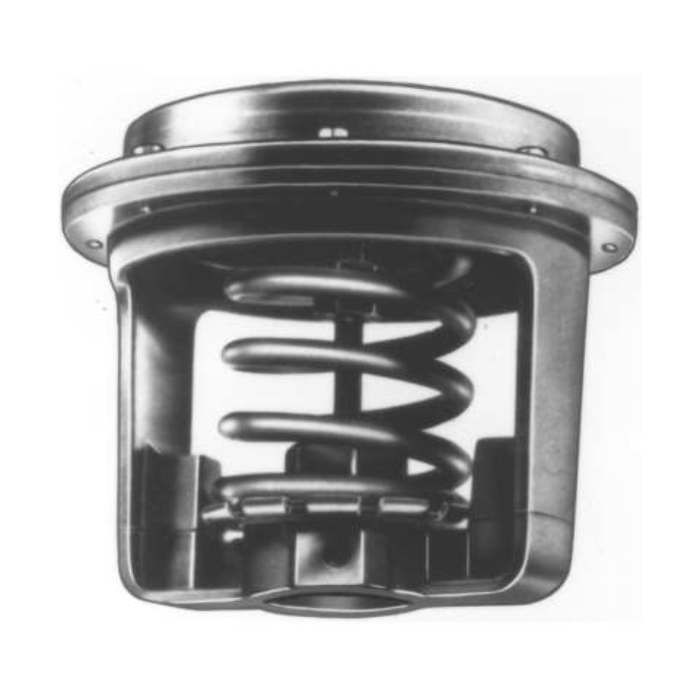

Honeywell MP953D1107/U Pneumatic Fail-Safe Spring Return

Product Description

The Honeywell MP953D1107/U is a pneumatic fail-safe spring return actuator designed for HVAC control systems. It operates effectively in various environments, providing reliable performance.

• Spring return mechanism ensures safety in case of air failure.
• Dual barbed fitting for easy installation with 5/32 inch and 1/4 inch O.D. tubing.
• Medium actuator force with a stroke length of 3/4 inch.

Product Highlights

This actuator is suitable for valves ensuring precise control of steam and liquids in HVAC applications.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: MP953D1107/U

Technical Specifications

• Fail Safe Mode: Spring Return
• Operating Conditions: 0 F to 140 F (-18 C to 60 C)
• Dimensions: 7 1/8 inches diameter x 5 5/8 inches high
• Maximum Safe Operating Pressure: 25 psi (172 kPa)
• Stroke Length: 3/4 inches (19 mm)
• Spring Range: 8 psi to 13 psi (55 kPa to 90 kPa)
• Air Connections: Dual barbed fitting for 5/32 inch and 1/4 inch O.D. plastic tubing
• Operating Humidity Range: 5 to 95% RH
