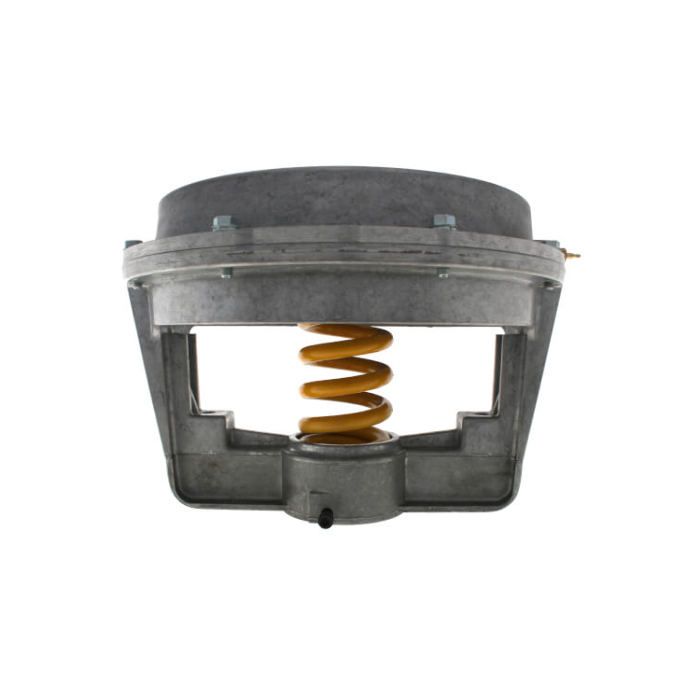

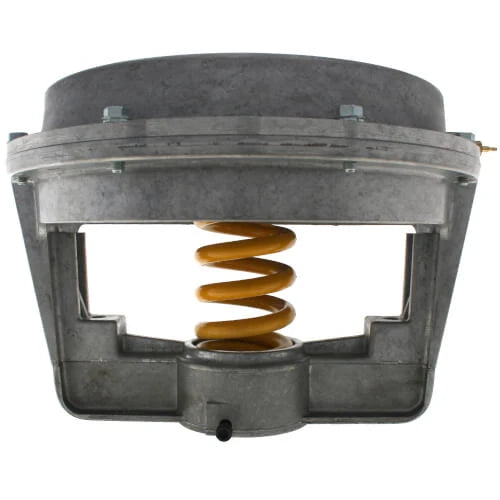

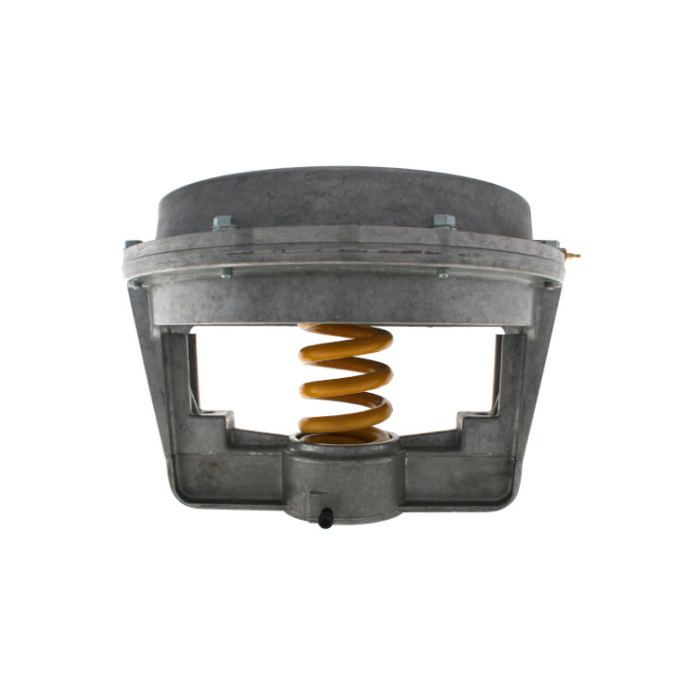

Honeywell MP953C1562/U pneumatic fail-safe spring return 4-11 psi 13 inch diameter 3/4 inch stroke

Product Description

The HONEYWELL MP953C1562/U is a pneumatic fail-safe spring return valve actuator designed for proportional control in HVAC systems. It features a dual barbed fitting for 5/32 in. O.D. and 1/4 in. O.D. plastic tubing, operates with a direct acting mechanism, and has a spring range of 4 psi to 11 psi with a 3/4 inch stroke. This actuator is suitable for operating V5011, V5013, and VGF valve assemblies.

• Rolling diaphragm for long life and low hysteresis.
• Easily attached to valve.
• Slide lock feature permits simple engagement to valve stem.

Product Highlights

This pneumatic actuator provides proportional control for HVAC valve assemblies, featuring a fail-safe spring return and flexible installation options.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: MP953C1562/U

Technical Specifications

• Operating Temperature: 0 F to 140 F (-18 C to 60 C)
• Maximum Safe Operating Pressure: 25 psi
• Included Components: 14004697-001 Stem Extension Assembly
• Compatible Valves: Valves with bonnet size 1-3/8 in. (35 mm)
• Operating Humidity Range: 5 to 95% RH
• Actuator Type: Valve
• Fail Safe Mode: Spring Return
• Stroke: 3/4 in.
• Actuator Force: High
• Action: Direct Acting
• Spring Range: 4 psi to 11 psi
• Air Connections: Dual barbed fitting for 5/32 in. O.D. and 1/4 in. O.D. plastic tubing
• Series: MP953 Series
• Family Series: Honeywell Actuators, MP953 Series
