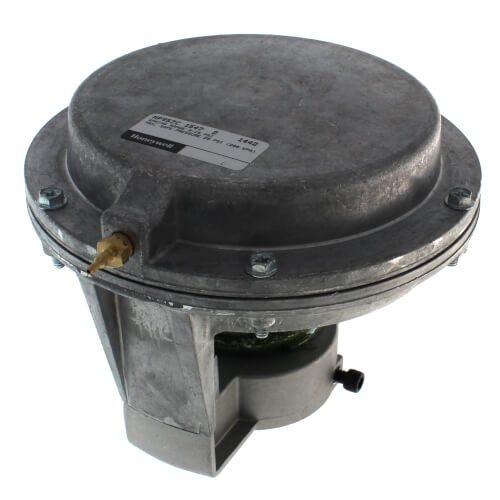

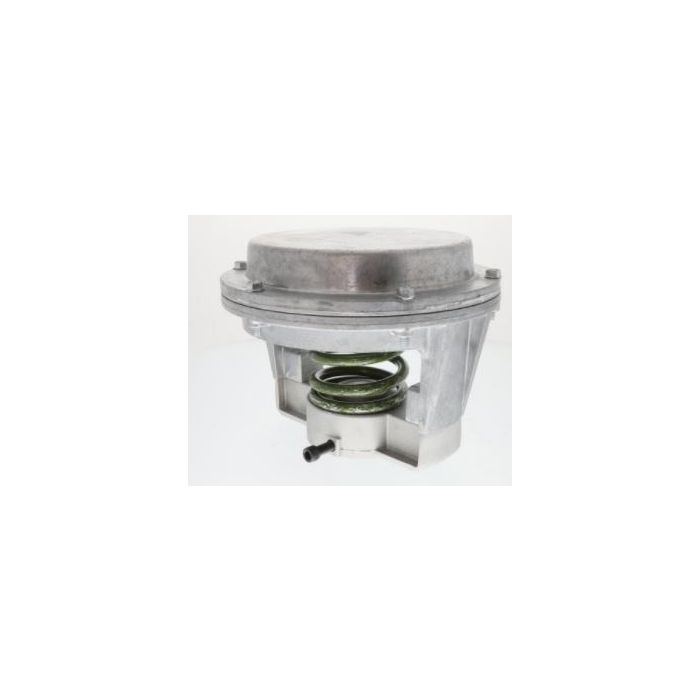

Honeywell MP953C1547 Pneumatic Valve Actuator 8 Inch Medium Force

Product Description

The Honeywell MP953C1547 is a high-performance pneumatic valve actuator, featuring an eight-inch diameter and medium force functionality. With a spring range of three to fifteen psi and a one and a half inch stroke, this actuator offers precise control in various HVAC systems.

• Direct acting valve mechanism with a simple installation process.
• Capable of operating between zero degrees Fahrenheit to one hundred forty degrees Fahrenheit.
• Dual barbed fitting for various tubing sizes, enhancing versatility.

Product Highlights

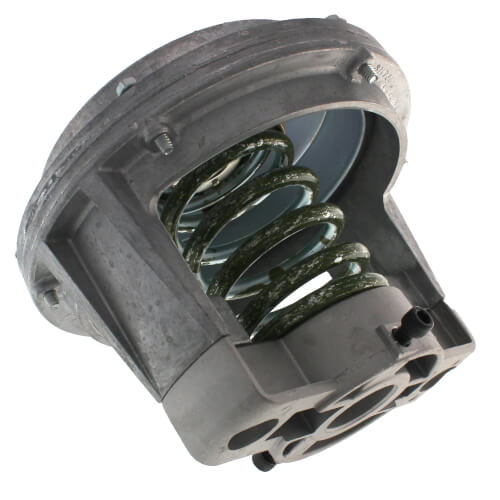

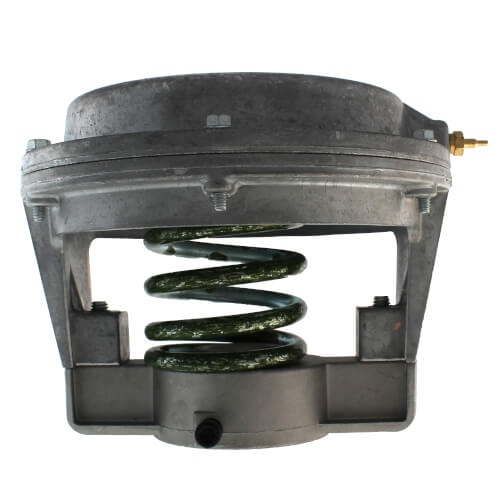

Constructed to provide long-lasting service, the MP953C1547 includes a rolling diaphragm and slide lock feature, improving engagement to valve stems and overall operational efficiency.

Product Information

Standard Information

• Fail Safe Mode: Spring return ensures reliable operation even during power interruptions.
• Weight: Seven point four six pounds, providing a sturdy yet manageable installation.

Technical Specifications

• Actuator Type: Valve
• Maximum Safe Operating Pressure: Twenty-five psi
• Operating Humidity Range: Five to ninety-five percent RH
