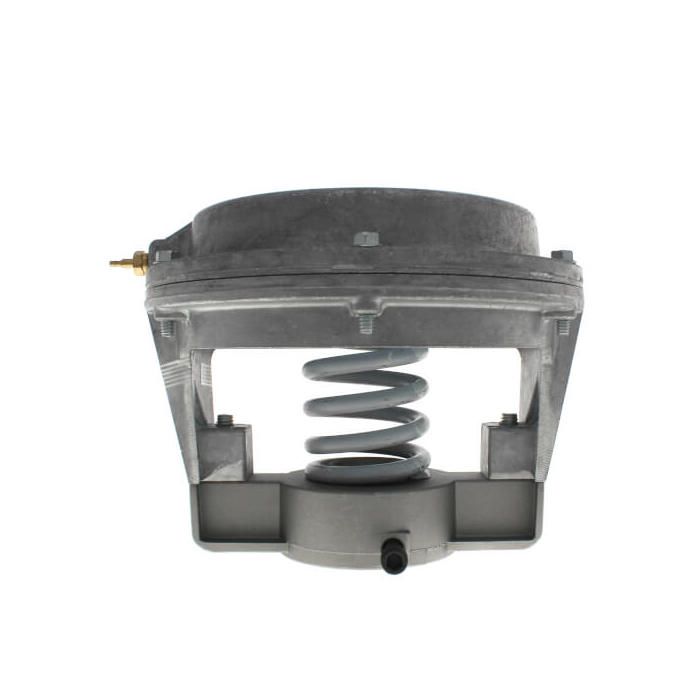

Honeywell MP953C1083/U Pneumatic Fail-Safe Spring Return

Product Description

The Honeywell MP953C1083/U is a pneumatic fail-safe spring return actuator designed for HVAC systems. This device facilitates proportional control of steam and liquids by operating with compatible valve assemblies. It supports both direct and reverse action control, enhancing flexibility in system performance.

• Rolling diaphragm for long life and minimal hysteresis.
• Easily attaches to valves, supporting post-piping installation.
• Slide lock feature for simple engagement with the valve stem.

Product Highlights

This actuator operates within a pressure range of four to eleven psi and features a 3/4 inch stroke.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: MP953C1083/U

Technical Specifications

• Dimensions: Eight inches diameter, six and a half inches high
• Maximum Safe Operating Pressure: 25 psi (172 kPa)
• Temperature Range: 0 F to 140 F (-18 C to 60 C)
• Operating Humidity Range: 5 to 95% RH
• Stroke: Three-quarters inch (19 mm)
• Actuator Force: Medium
• Spring Range: Four psi to eleven psi (28 kPa to 76 kPa)
• Air Connections: Dual barbed fitting for five thirty-seconds inch O.D. and one quarter inch O.D. plastic tubing
