Product Description

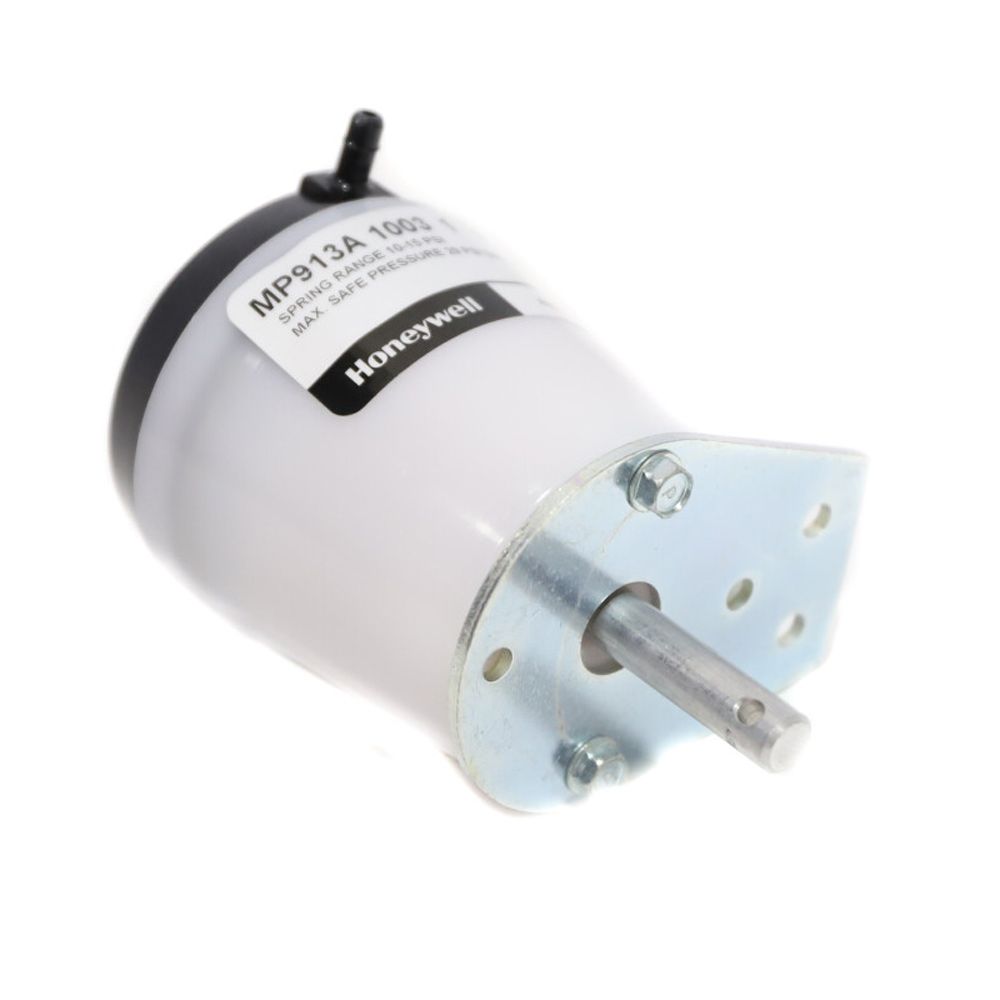

The Honeywell MP913A1003 is a pneumatic actuator designed for variable volume dampers. It operates within a 10 to 15 psi spring range. This device is ideal for controlling small high velocity air valves and variable volume dampers efficiently. The product includes a roll pin and a flat mounting bracket for installation.
- Pneumatic damper actuator with a range of 10-15 psi
- Constructed with a durable delrin body
- Compatible with various air valve types
Product Highlights
This actuator works effectively for proportional control in HVAC applications. It is suitable for integration with small high-velocity mixing boxes and can be used in different configurations, including with or without a crank arm.
Product Information
Standard Information
-
Brand: Honeywell
-
MPN: MP913A1003
Technical Specifications
-
Operating Pressure Range: 10 to 15 psi
-
Max Pressure: 30 psi
-
Temperature Range: 50°F to 140°F
-
Air Connection: 1/8 NPT, barbed fitting for 1/4 O.D. plastic tubing
-
Weight: 0.52 lbs
-
Dimensions: 14 inches (depth) x 9.5 inches (width) x 2.5 inches (height)
-
Stroke: 1 inch
