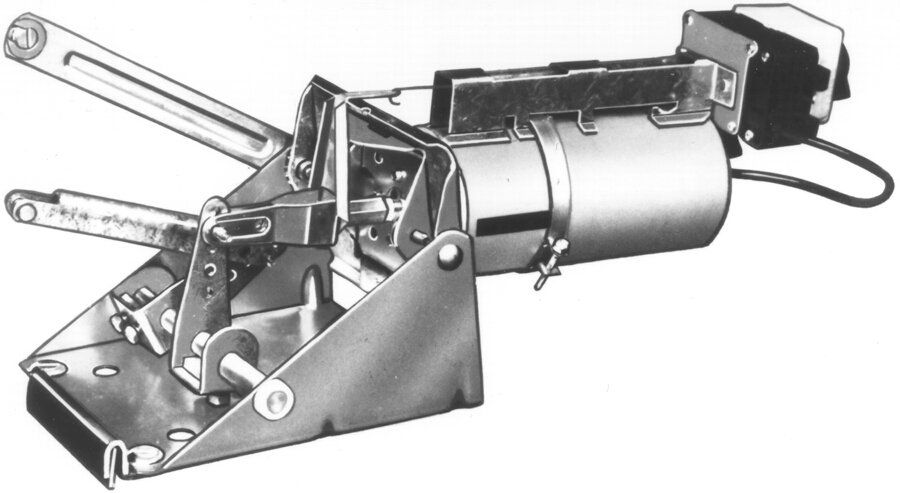

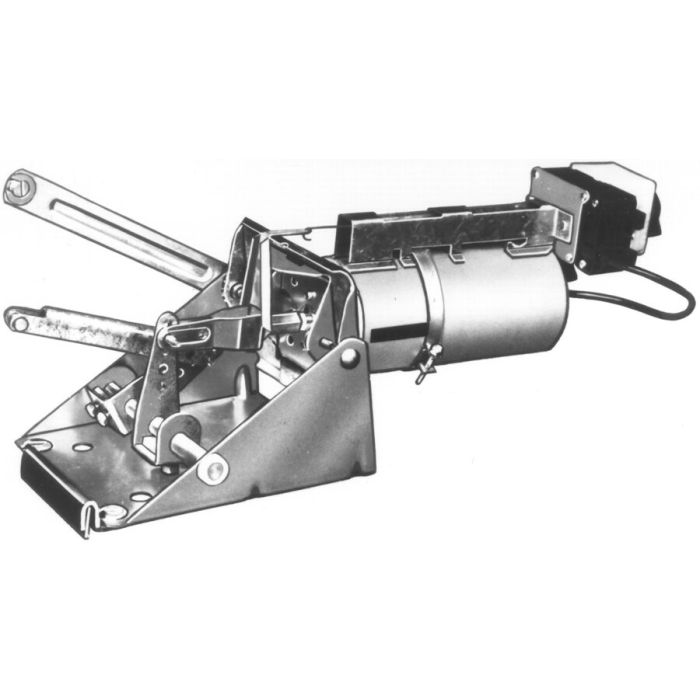

Honeywell MP909H1392/U Pneumatic Fail-Safe Spring Return

Product Description

The Honeywell MP909H1392/U is a pneumatic fail-safe spring return actuator designed for use in various HVAC applications. It operates effectively within a pressure span of 10 psi and includes a spring for reliable performance. This actuator is compatible with different mounting configurations and is ideal for managing air flow in systems.

• Combination five thirty-seconds inch and one-quarter inch barb connections
• Positive positioner for accurate control
• Includes a robust four-inch stroke

Product Highlights

This actuator is built for efficiency and reliability in pneumatic control systems.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: MP909H1392/U

Technical Specifications

• Operating Conditions: -28 F to 160 F (-33 C to 71 C)
• Maximum Safe Operating Pressure: 25 psi
• Stroke Length: 4 inches
• Actuator Type: Damper
• Fail Safe Mode: Spring Return
• Diaphragm Effective Area: 6.6 sq inches
• Air Connections: Positioner: Pilot five thirty-seconds inch barb, Main one-quarter inch barb
• Dimensions: 19.75 inches long x 8.5 inches high x 6.875 inches wide
