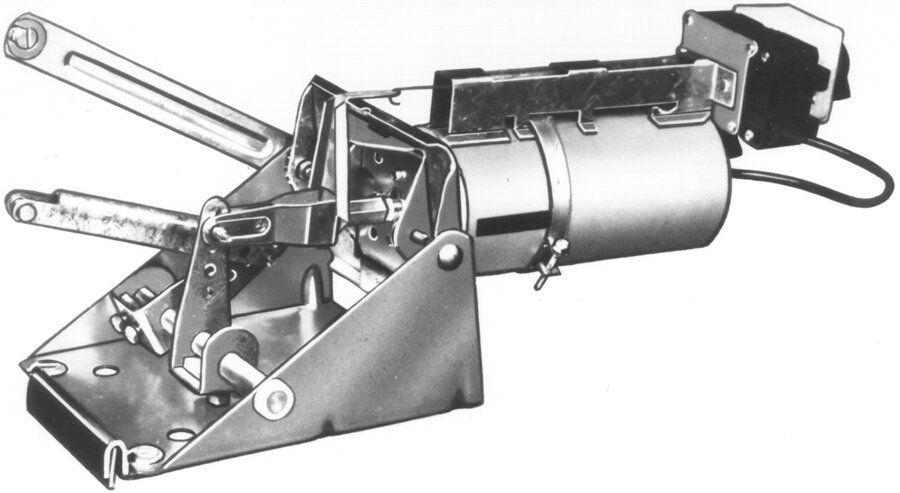

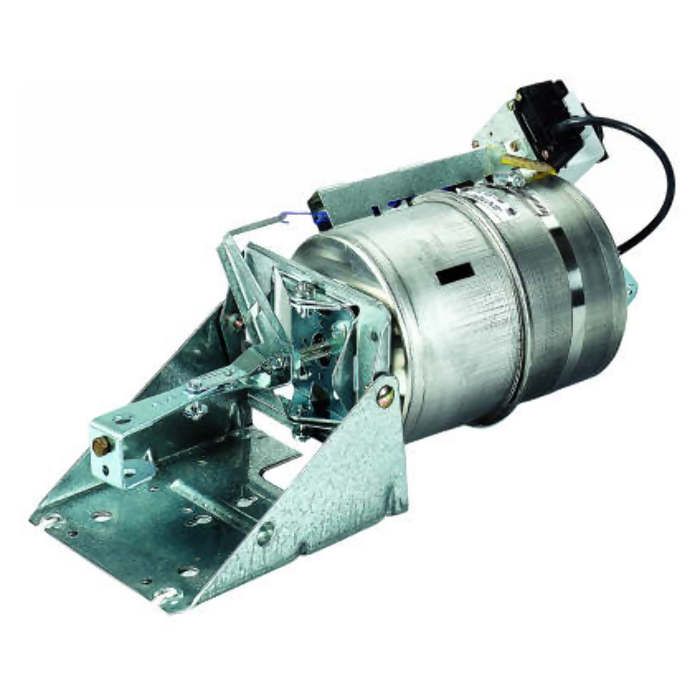

Honeywell MP909H1331/U Pneumatic Fail-Safe Spring Return

Product Description

The Honeywell MP909H1331/U is a pneumatic fail-safe spring return actuator. It is designed for proportional control of variable volume terminal units, mixing boxes, and small to medium-sized dampers. This actuator features a rugged design with low-friction components, ensuring efficient operation in various applications.

• Includes a positive positioner with a 10 psi span.
• Combination 5/32 inches and 1/4 inches barbs for easy connection.
• Reliable operation from -28 F to 160 F.

Product Highlights

This actuator provides reliable control, ensuring your system operates effectively and efficiently.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: MP909H1331/U

Technical Specifications

• Dimensions: 22 inches long x 7.25 inches high x 6.875 inches wide
• Operating Pressure: Maximum safe operating pressure is 25 psi
• Temperature Range: Operates from -20 F to +160 F (-29 C to +71 C)
• Stroke: 4 inches
• Actuator Force: Medium
• Spring Range: 10 psi span
• Humidity Range: 5 to 95% RH
• Effective Diaphragm Area: 6.6 square inches
