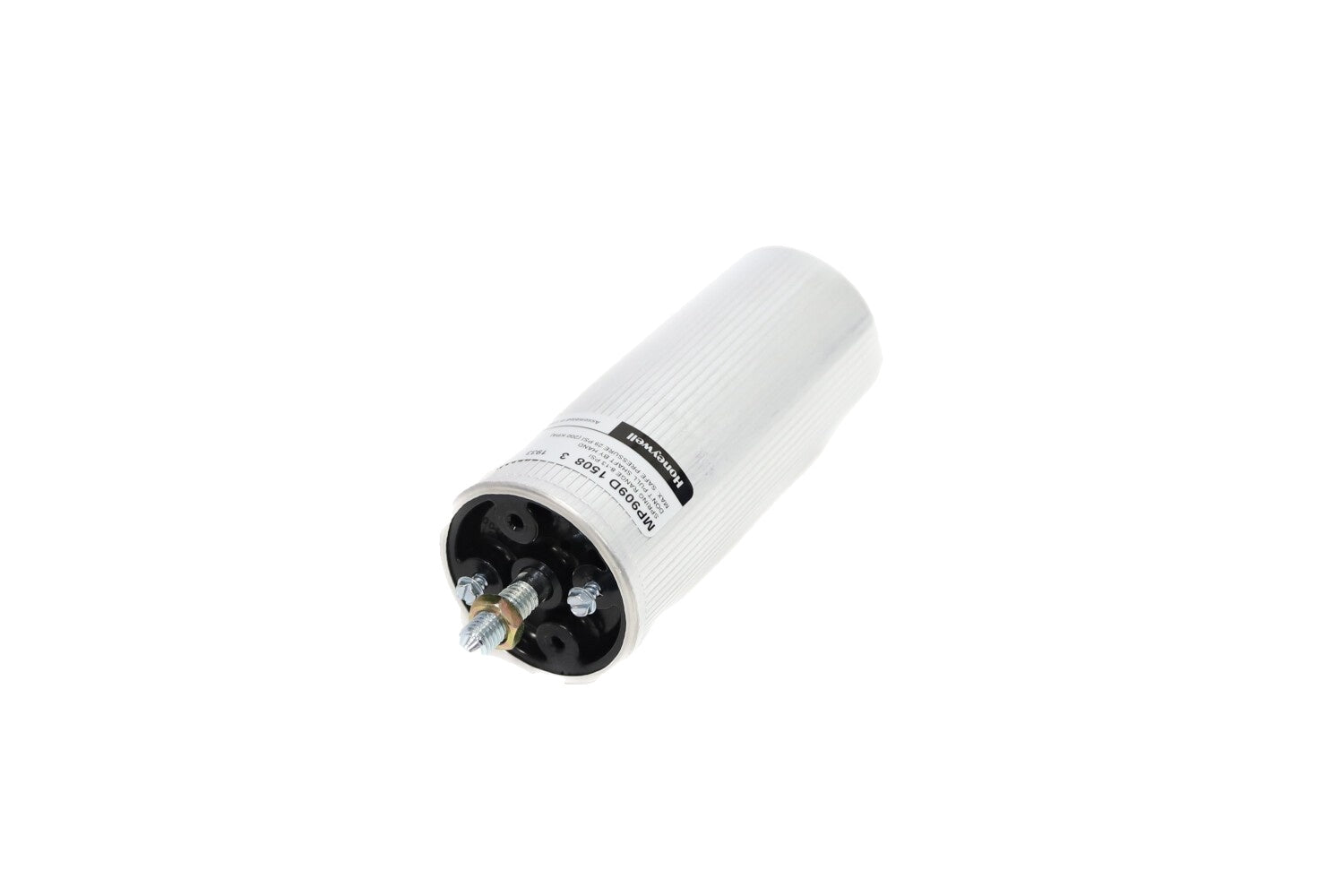

Honeywell MP909D1508 Actuator Stroke 2.4 Inches Pressure 8-13 PSI

Product Description

The Honeywell MP909D1508 Actuator is designed for pneumatic proportional control of variable volume terminal units and small dampers. This actuator ensures precise airflow management within HVAC systems, enhancing overall system efficiency.

• Robust aluminum body with a low-friction shaft bearing.
• Operates within a precise range of 8 to 13 psi.
• Includes a protected barb connector for leakproof operation.

Product Highlights

Engineered for reliability, the Honeywell actuator features a ribbed aluminum body that ensures durability while maintaining a low-friction movement for operational efficiency. This model is compatible with various mounting and connection hardware options, offering versatility in application.

Product Information

Standard Information

• Brand: Honeywell
• MPN: MP909D1508

Technical Specifications

• Operation Range: 8 to 13 psi
• Type: Pneumatic Actuator with Spring Return
• Max Pressure: 30 PSI
• Temperature Range: 50 degrees Fahrenheit to 140 degrees Fahrenheit
• Air Connections: 1/8 inch NPT, Barbed fitting for 1/4 inch O.D. tubing
