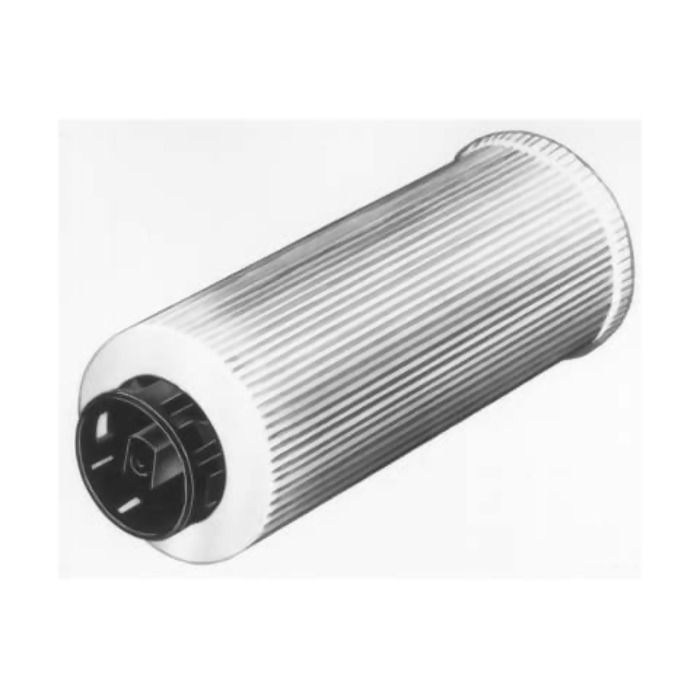

Honeywell MP909D1367/U Pneumatic Damper Actuator 5-10 PSI Spring Return

Product Description

The Honeywell MP909D1367/U is a pneumatic damper actuator designed for efficient control in HVAC applications. This actuator operates within a pressure range of five to ten psi and features a three-inch stroke. It is suitable for use in pneumatic proportional control of variable volume terminal units and small dampers.

• Robust ribbed aluminum body
• Low-friction shaft bearing for smooth operation
• Protected barb connector for reliable air connection

Product Highlights

The MP909D actuator provides versatile mounting and connecting hardware options along with a positive leak-proof seal. This ensures efficient operation and reliability in various settings.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: MP909D1367/U

Technical Specifications

• Operating Conditions: Fifty degrees Fahrenheit to one hundred forty degrees Fahrenheit (ten degrees Celsius to sixty degrees Celsius)
• Maximum Safe Operating Pressure: Thirty psi (two hundred seven kPa)
• Stroke Length: Three inches (seventy-six mm)
• Actuator Force: Low spring range (five psi to ten psi)
• Diaphragm Effective Area: Three square inches (nineteen point four square centimeters)
• Air Connection: Barbed fitting for three thirty-seconds inch O.D. tubing
