Honeywell MP120KL Mounting Plate 120 VAC

Product Description

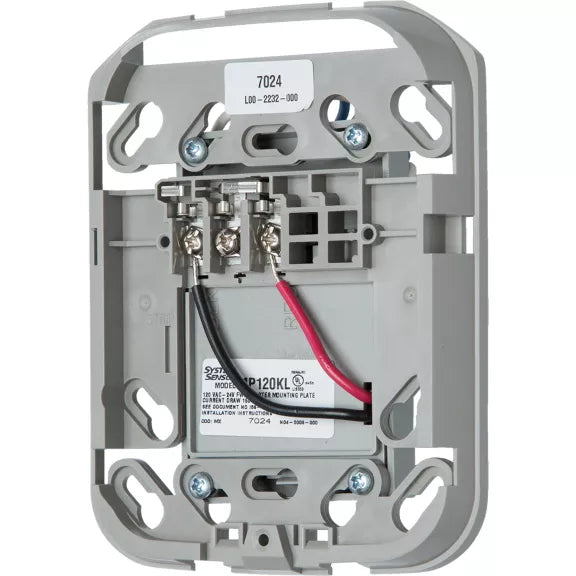

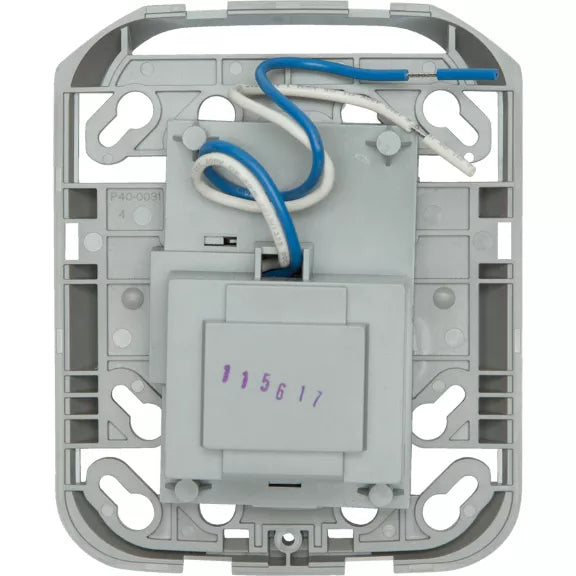

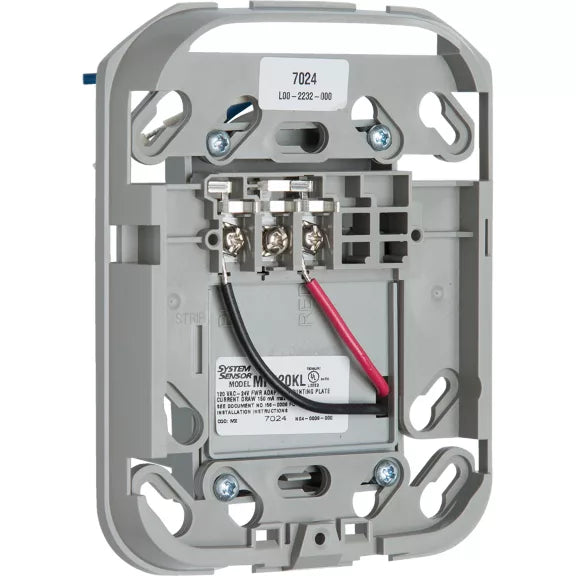

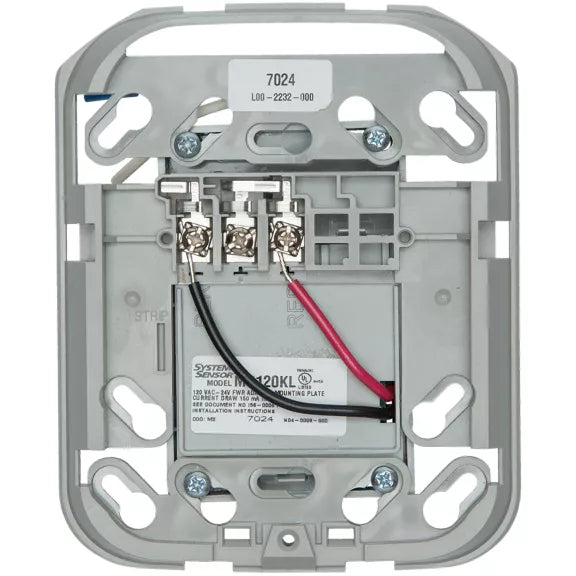

The HONEYWELL MP120KL mounting plate is designed to use 120V AC to power L-Series horns, strobes, horn strobes, chimes, and chime strobes. This mounting plate converts 120V AC to nominal 24V full wave rectified (FWR). It is listed to UL 464 for fire protective signaling systems and compatible with all 2-wire L-Series devices.

• Designed for both indoor and outdoor use
• Plug-in design eliminates ground faults
• Power supply that converts 120V AC to nominal 24V full wave rectified (FWR)

Product Highlights

The MP120KL mounting plate powers two-wire L-Series devices from a 120 VAC supply. It is suitable for use with horns, strobes, chimes, and other signaling appliances.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: MP120KL
• Country of Origin: CN

Technical Specifications

• Brand: Farenhyt|Gamewell-FCI|NOTIFIER
• ADI Part Number: BK-MP120KL
• Brand Name: System Sensor
• Manufacturer: Honeywell International, Inc
• Manufacturer Part Number: MP120KL
• Product Model: MP120KL
• Product Name: 120 VAC Adapter Mounting Plate
• Product Series: L
• Product Type: Mounting Device
• Device Supported: Chime, Horn, Strobe
• Material: Metal
• ADI Part Number Replaces: BK-MP120K
• Model Number Replaces: MP120K
• Compatibility: CHRL, CHSCRL, CHSCWL, CHSRL, CHSWL, CHWL, HRL, HWL, P2RL, P2RL-P, P2RL-SP, P2WL, P2WL-P, P2WL-SP, PC2RL, PC2WL, SCRL, SCWL, SCWL-CLR-ALERT, SRL, SRL-P, SRL-SP, SWL, SWL-ALERT, SWL-CLR-ALERT, SWL-P, System Sensor L-Series Chimes/Chime Strobes/Horns/Horns Strobes/Strobes:
