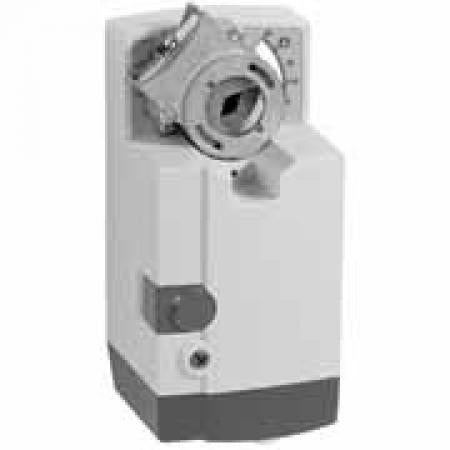

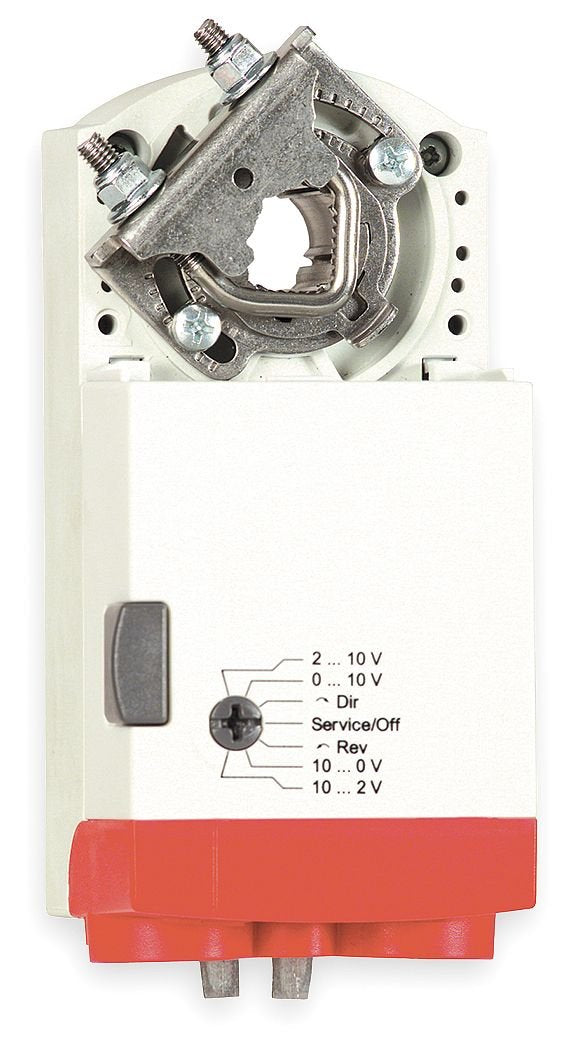

Honeywell MN7220A2205 Non-Spring Return Damper Actuator 175 lb-in 24Vac -5 to 140 Degrees F

Product Description

The Honeywell MN7220A2205 is a robust non-spring return damper actuator designed for modulating control. This model offers a substantial torque of 175 lb-in and operates within a wide temperature range of -5 to 140 degrees Fahrenheit, utilizing a 24Vac power supply.

• Provides reliable and precise control of air dampers and ventilation systems.
• Features adjustable settings for enhanced flexibility in application.
• Constructed from high-quality materials ensuring durability and long-term performance.

Product Highlights

Equipped with features such as dual integral adjustable stops and a self-centering clamping shaft adapter, the MN7220A2205 facilitates straightforward setup and maintenance. Its non-spring return mechanism ensures consistent operations without the need for energy storage components.

Product Information

Specifications:

• Control Signal: 2-10 Vdc or 4-20 mA
• Power Supply: 24 Vac ±20%
• Operational Temperature: -5 to +140 F
• Torque: 175 lb-in
• Mounting: Direct coupled
• Frequency: 50/60 Hz
• Environmental Rating: NEMA 2
• Weight: 3.64 lbs
