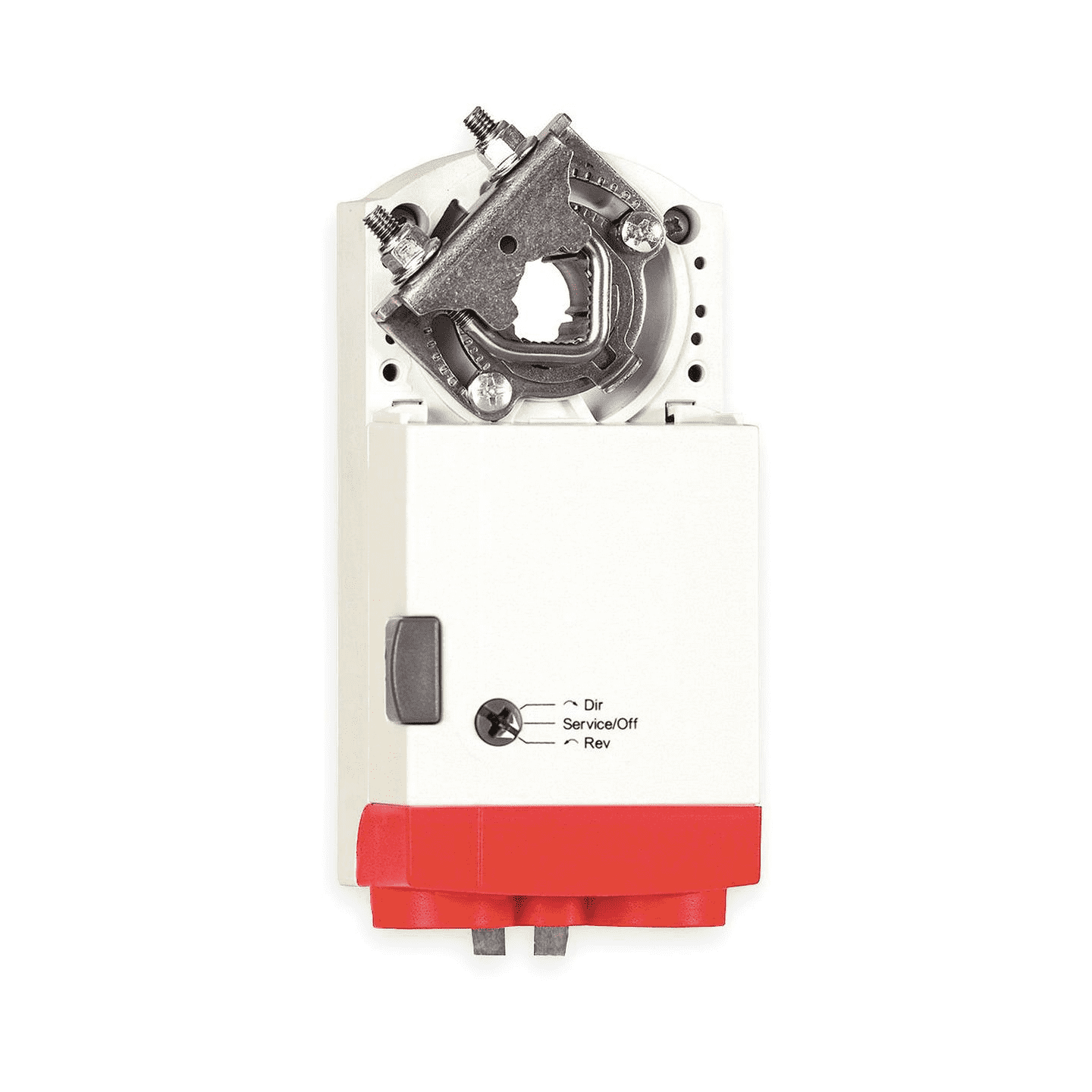

Honeywell MN6110A1201/U Direct Coupled Actuator 88 lb-in

Product Description

The Honeywell MN6110A1201/U is a direct coupled actuator designed for HVAC control applications. It features a non-spring return mechanism that operates at a power rating of 24 VAC. This actuator provides an output torque of 88 lb-in, making it suitable for various control tasks in commercial building management. The actuator supports floating control for efficient operation.

• Power Consumption: 24 VAC
• Operating Temperature: -5 F To 140 F
• Two SPDT Auxiliary Switches Available

Product Highlights

This actuator includes an access cover for easy wiring access, declutch capability for manual adjustments, and is UL listed for safety compliance.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: MN6110A1201/U

Technical Specifications

• Electrical Connections: Field Wiring 14-22 AWG To Screw Terminals
• Housing: Self-Centering Shaft Adapter
• Rotation Direction: Selectable By Switch
• Field-Installable Auxiliary Switches: Yes
• Mounting: Can be mounted in any orientation
