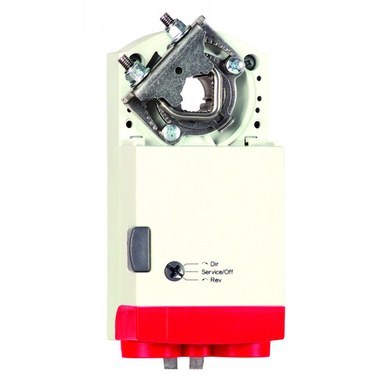

Honeywell MN6110A1003/U Direct Coupled Actuator 88 lb-in

Product Description

The Honeywell MN6110A1003/U is a direct coupled actuator designed for HVAC systems. This actuator provides a torque rating of eighty-eight pound-inches, making it suitable for controlling dampers effectively. The actuator operates on a voltage of twenty-four VAC and features a floating control mechanism.

• Non-spring return mechanism
• Field-installable auxiliary switches
• UL listed for safety

Product Highlights

This Honeywell actuator is ideal for use in various HVAC applications where reliable damper control is required. Its design allows for both automatic and manual operation, making it versatile in different settings.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: MN6110A1003/U

Technical Specifications

• Power Consumption: 24 VAC
• Auxiliary Switches: Two SPDT
• Operating Temperature: -5 F to 140 F (-20 C to 60 C)
• Electrical Connections: Field wiring 14-22 AWG to screw terminals under removable access cover
• Housing: Self-centering shaft adapter
• Torque Rating: 88 lb-in
