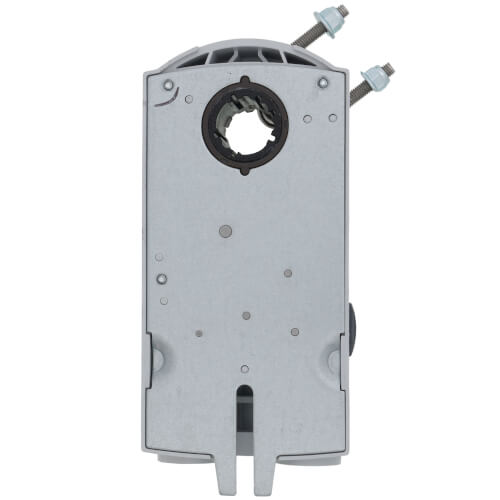

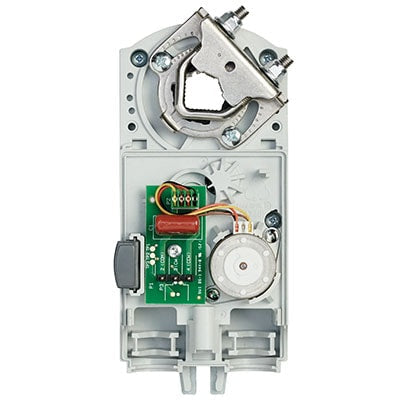

Honeywell MN6105VAV Non-Spring Return Direct-Coupled Damper Actuator 5Nm

Product Description

The Honeywell MN6105VAV Non-Spring Return Direct-Coupled Damper Actuator is designed for precision control in HVAC systems. Offering reliable operation and a torque of 5 Nm, it is an ideal solution for managing airflow through dampers.

• Compact structure allows installation in limited spaces.
• Integrated thermal overload protection ensures durability and safe operation.
• Compatible with 24VAC systems, enhancing versatility across various setups.

Product Highlights

System compatibility focuses on Spyder and Stryker controllers, accommodating various application needs with its floating control that handles up to 44 pounds-inch torque. This actuator is mountable in any orientation, thanks to its adjustable mechanical end limits and declutch for manual adjustments.

Product Information

Standard Information

• Application: HVAC
• Dimensions: 7.31 inches high x 5.31 inches wide x 3.25 inches deep

Technical Specifications

• Weight: 1.2 lb
• Material: Plastic housing
• Mounting: Direct Coupled
• Frequency: 50/60 Hz
• Electrical Connections: Ribbon with a push on 3-pin connector
• Supply Voltage: 24 Vac ±20%, 24 Vdc
• Power Consumption: 5 VA when driving
• Operating Humidity Range: 5 to 95% RH, non-condensing
