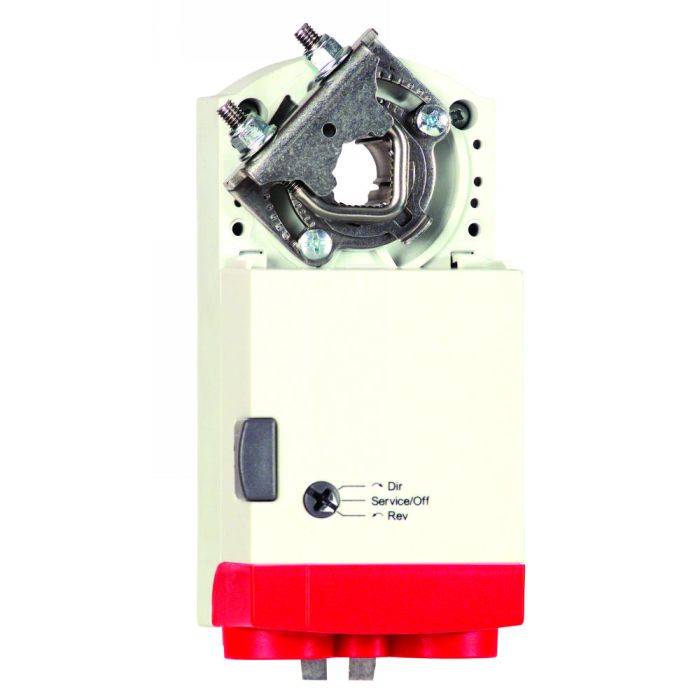

Honeywell MN6105A1011/U Direct Coupled Actuator 44 in-lb

Product Description

The Honeywell MN6105A1011/U is a direct coupled actuator providing a torque of forty-four inch-pounds. This actuator operates at twenty-four volts alternating current and is designed for direct coupling with dampers. It features a non-spring return mechanism, ensuring it stays in place when not energized.

• Suitable for HVAC systems and compatible with various dampers.
• Provides features such as an access cover for easy connectivity.
• Manual adjustment is possible with a declutch mechanism.

Product Highlights

The MN6105A1011/U actuator is built for reliable performance in commercial HVAC applications.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: MN6105A1011/U

Technical Specifications

• Power Consumption: 5 VA
• Operating Conditions: -5°F to 140°F (-20°C to 60°C)
• Shaft Adapter Type: U-Bolt Clamp
• Housing: Self-Centering Shaft Adapter (Shaft Coupling)
• Rotation Direction: Selectable by switch
• End Limits: Mechanical
• Auxiliary Switches: Field-installable
