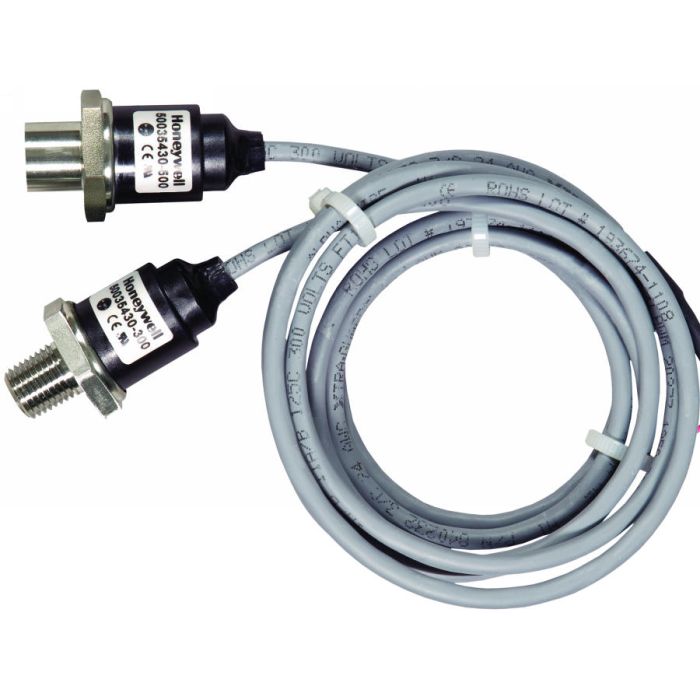

Honeywell MLH500PSCDJ1240 Gauge Pressure Sensor 0-500 PSIG 4-20 mA

Product Description

The Honeywell MLH500PSCDJ1240 is a gauge pressure sensor designed for accuracy and durability. This sensor operates within a pressure range of zero to five hundred psi and features a 4-20 mA two-wire output. Built with all-metal wetted parts, it is suitable for various fluid applications, including refrigerants.

• Accuracy of 0.25% Full Scale Span
• Operates on supply voltage from 9.5 VDC to 30 VDC
• Response time of less than 2 milliseconds

Product Highlights

This sensor provides a reliable solution for HVAC applications. Its design minimizes issues with O-ring compatibility due to no internal elastomeric seals.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: MLH500PSCDJ1240

Technical Specifications

• Pressure Range: 0-500 psig
• Output Signal: 4-20 mA, 2-wire
• Voltage Supply: 9.5 VDC to 30 VDC
• Response Time: Less than 2 ms
• Operating Temperature: -40 F to 257 F (-40 C to 125 C)
• Connection Size: 1/4 SAE female Schrader
• Material: Housing made from black plastic, contact parts made of SST 304L and Haynes 214 alloy
