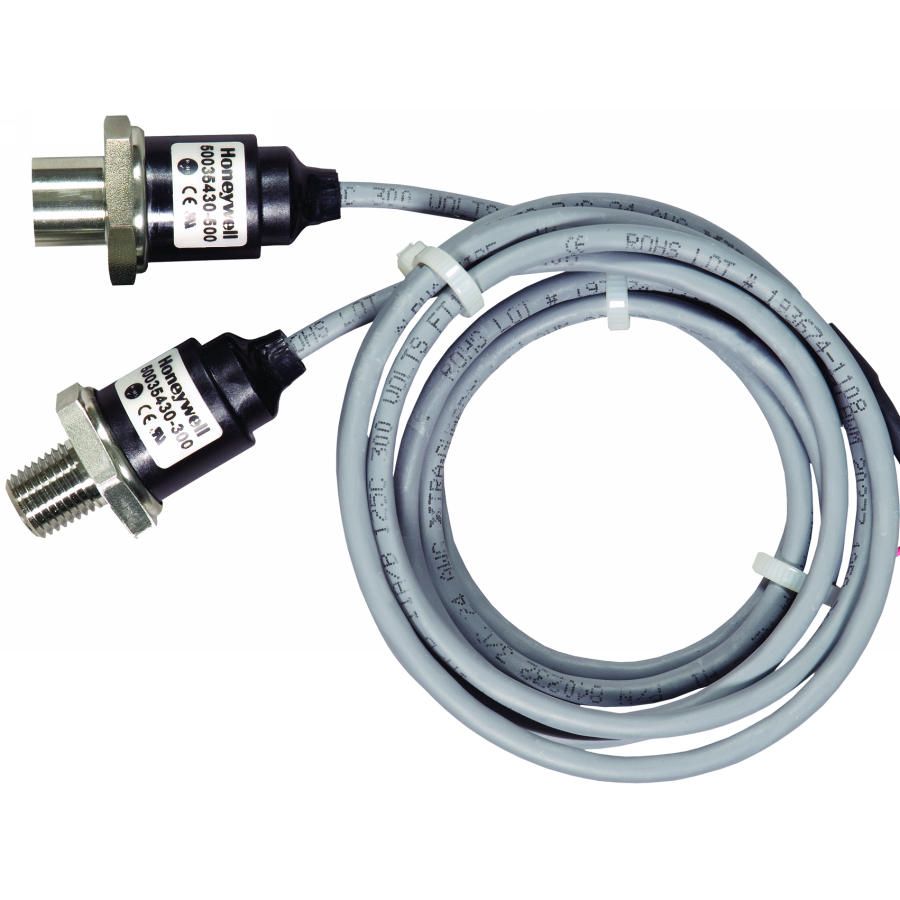

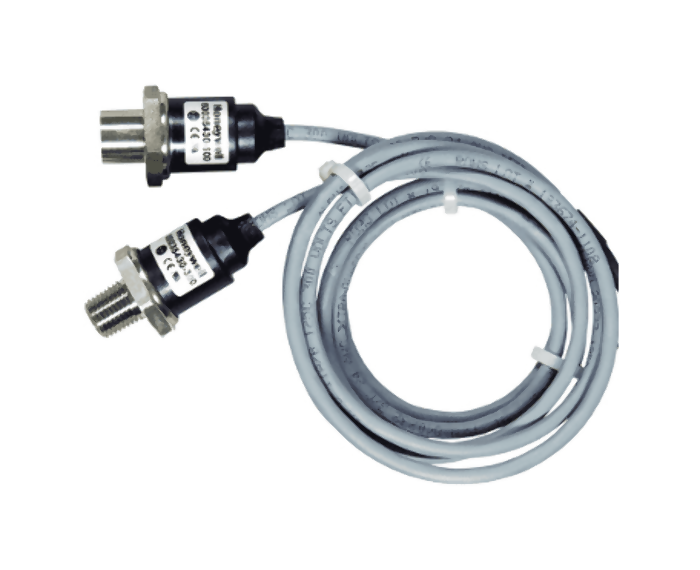

Honeywell MLH050PSCDJ1235 Gauge Pressure Sensor 3 Meter Cable

Product Description

The Honeywell MLH050PSCDJ1235 is a gauge pressure sensor that specifically measures up to fifty pounds per square inch gauge (psig). It is equipped with a three-meter cable and utilizes a two-wire 4-20mA output, making it suitable for various HVAC and refrigeration applications.

• Accuracy of 0.50% Full Scale Span.
• Built with all-metal wetted parts, suitable for fluid applications.
• Includes reverse polarity and overvoltage protection.

Product Highlights

This sensor provides precision and reliability in monitoring pressure levels in multiple systems, including those using refrigerants. Its low response time of less than two milliseconds ensures accurate measurements in real-time applications.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: MLH050PSCDJ1235

Technical Specifications

• Pressure Range: 0-50 psig
• Output: 4-20 mA, 2-Wire
• Voltage Supply: 9.5 VDC to 30 VDC
• Temperature Range: -40 to 125 degrees Celsius
• Connection Size: 1/4-18 NPT
• Response Time: Less than 2 ms
• Proof Pressure: 3X Working Pressure
• Burst Pressure: 10X Working Pressure
