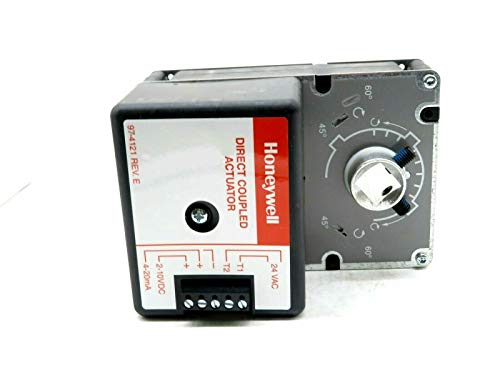

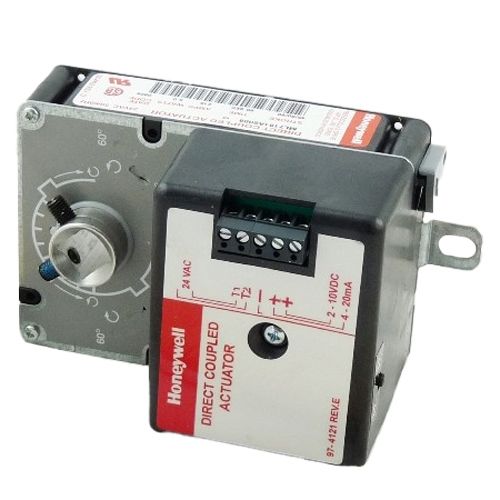

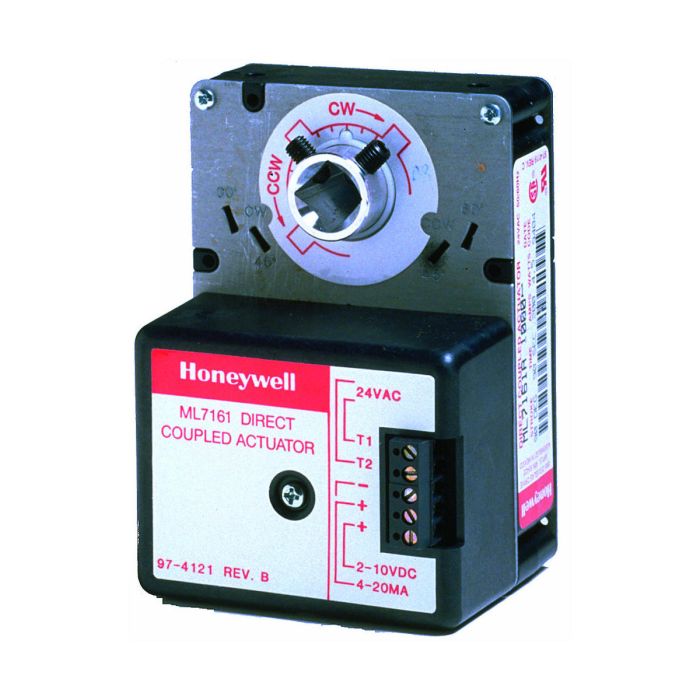

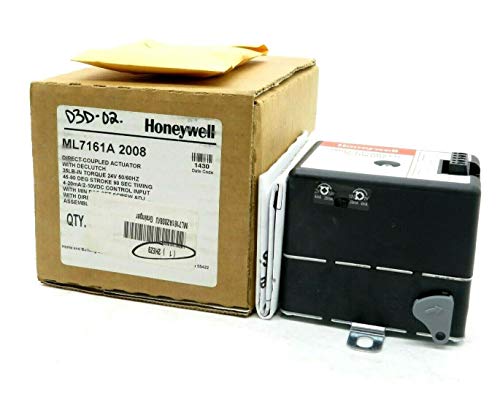

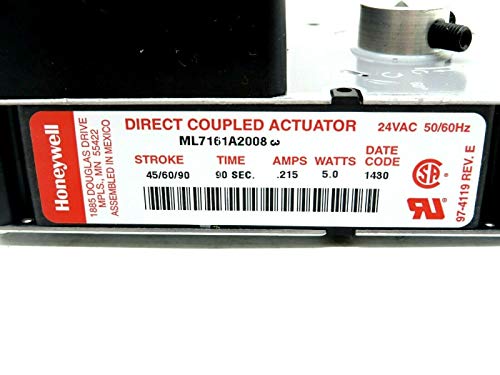

Honeywell ML7161A2008 Electric Actuator 35 in-lb

Product Description

The Honeywell ML7161A2008 electric actuator has a magnetic coupling that eliminates the need for limit switches or mechanical stops. It features selectable 45°, 60°, or 90° rotation in either direction and mounts directly on the damper shaft. This non-spring return, general-purpose actuator provides 35 lb/in torque and 90-second timing with a 2-10 Vdc control signal.

• Direct-coupled and non-spring return
• Selectable 45°, 60°, or 90° rotation
• Includes manual declutch lever and bag assembly

Product Highlights

The Honeywell ML7161A2008 is ideal for controlling dampers in variable air volume (VAV) terminal units and for mounting on ball valves.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: ML7161A2008
• Country of Origin: US

Technical Specifications

• Brand: Honeywell
• MPN: ML7161A2008
• Application: Dampers
• Return Action: Non-Spring Return
• Control Signal: Proportional
• Rated Torque: 35 in-lb
• Input Voltage: 24V AC
• Power Consumption: 5.4 VA
• Time to Close: 90 sec
• Mounting Type: Direct Mount
• Maximum Operating Temperature: 125 °F
• Minimum Operating Temperature: 20 °F
• Shaft Rotation: CW/CCW
• Stroke Degree: 90
• Shaft Type: 2 Set Screws; Aluminum Hub
• Overall Height: 5-5/8 in
• Overall Width: 3-3/8 in
• Overall Depth: 3 in
• Frequency: 50/60Hz
• Operating Temperature: 20 F To 125 F (-18 C To 50 C)
• Auxiliary Switches: Electrical: Selective NO Or NC, Not Simultaneous Pilot Duty: 50 VA, 24 VAC Switch Differential: Three Angular Degree Maximum
