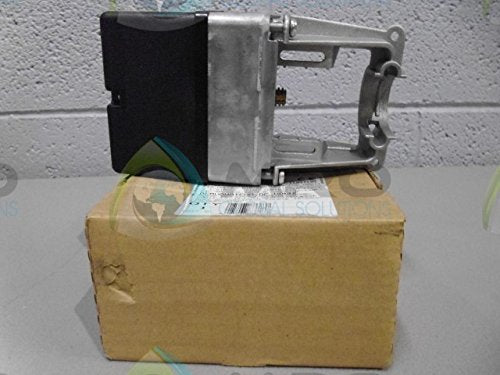

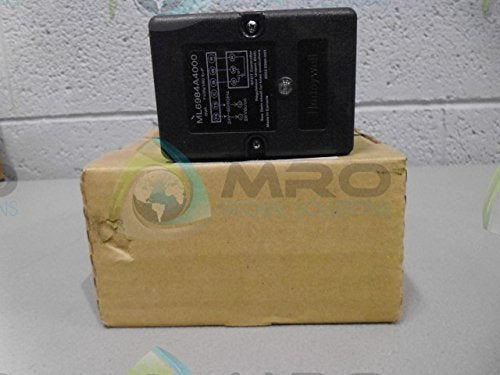

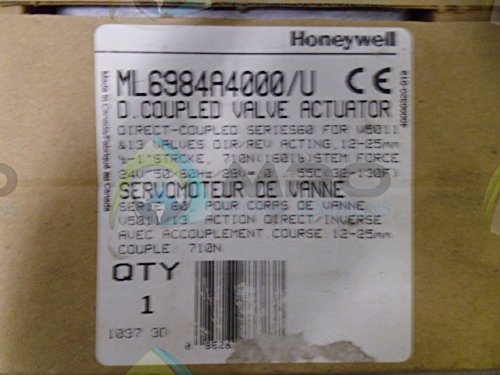

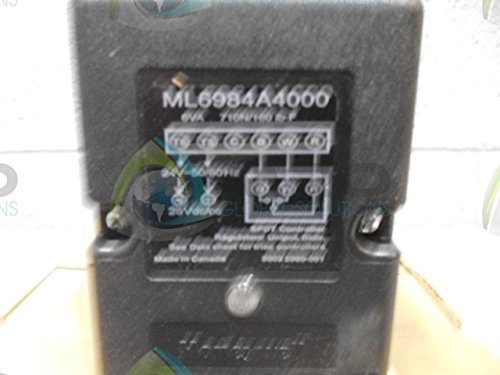

Honeywell ML6984A4000/U Non-Spring Return Direct-Coupled Valve Actuator 160 Lbf Force 3/5 Wire Operation 24Vac

Product Description

The Honeywell ML6984A4000/U is a non-spring return direct-coupled valve actuator designed for linear stem operation on V5011 and V5013 globe valves. It operates between 0.5 inches and 1 inch (13 mm to 25 mm) stroke and is compatible with low-voltage SPDT and SP3T electro-mechanical and electronic controllers.

• Designed for V5011 and V5013 globe valves
• Operates between 0.5 inches and 1 inch stroke
• Compatible with various controllers

Product Highlights

This actuator provides reliable performance for HVAC applications. It features a strong valve seat closing force of 160 lbf and is suitable for use in confined spaces due to its compact size.

Product Information

Standard Information

• Application: HVAC
• Dimensions (in.): 6 13/16 high x 4 wide x 3 3/16 deep
• Includes: Screw terminals
• Used With: V5011/13, VGF21, and VGF22 valves up to 3 inches; V5045 with 272629A

Technical Specifications

• Weight (lb): 2.2
• Materials: UV-stabilized plastic cover, aluminum base & yoke
• Mounting: Screws onto 1/4-28 UNF threaded valve stem
• Frequency: 50 Hz; 60 Hz
• Electrical Connections: Screw terminals
• Operating Humidity Range (% RH): 15 to 95 percent at 104 F (40 C)
• Supply Voltage: 28 Vdc; 24 Vac
• Power Consumption: Driving 6 VA, Holding 12 VA
• Shipping and Storage Temperature Range (F): -40 to +150
• Ambient Temperature Range (F): 32 to 130
• Switch Ratings: 24 Vac
• Environmental, Electrical or Ingress Protection Rating: NEMA 3R, IP54 (mounted in vertical position)
• Torque Rating: 160 lbf (710 N)
• Stroke (in.): 0.5 to 1 inches (13 to 25 mm)
• Feedback: Position feedback available with 272630D, 2-10 Vdc
