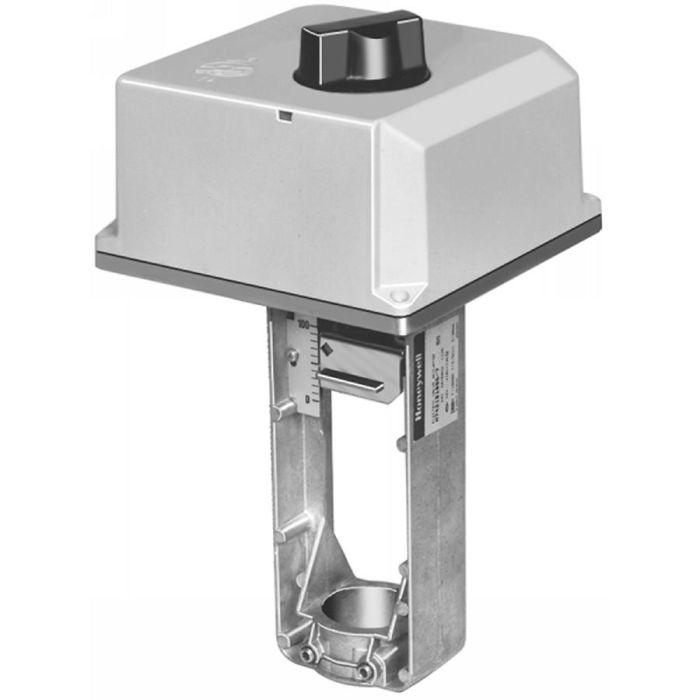

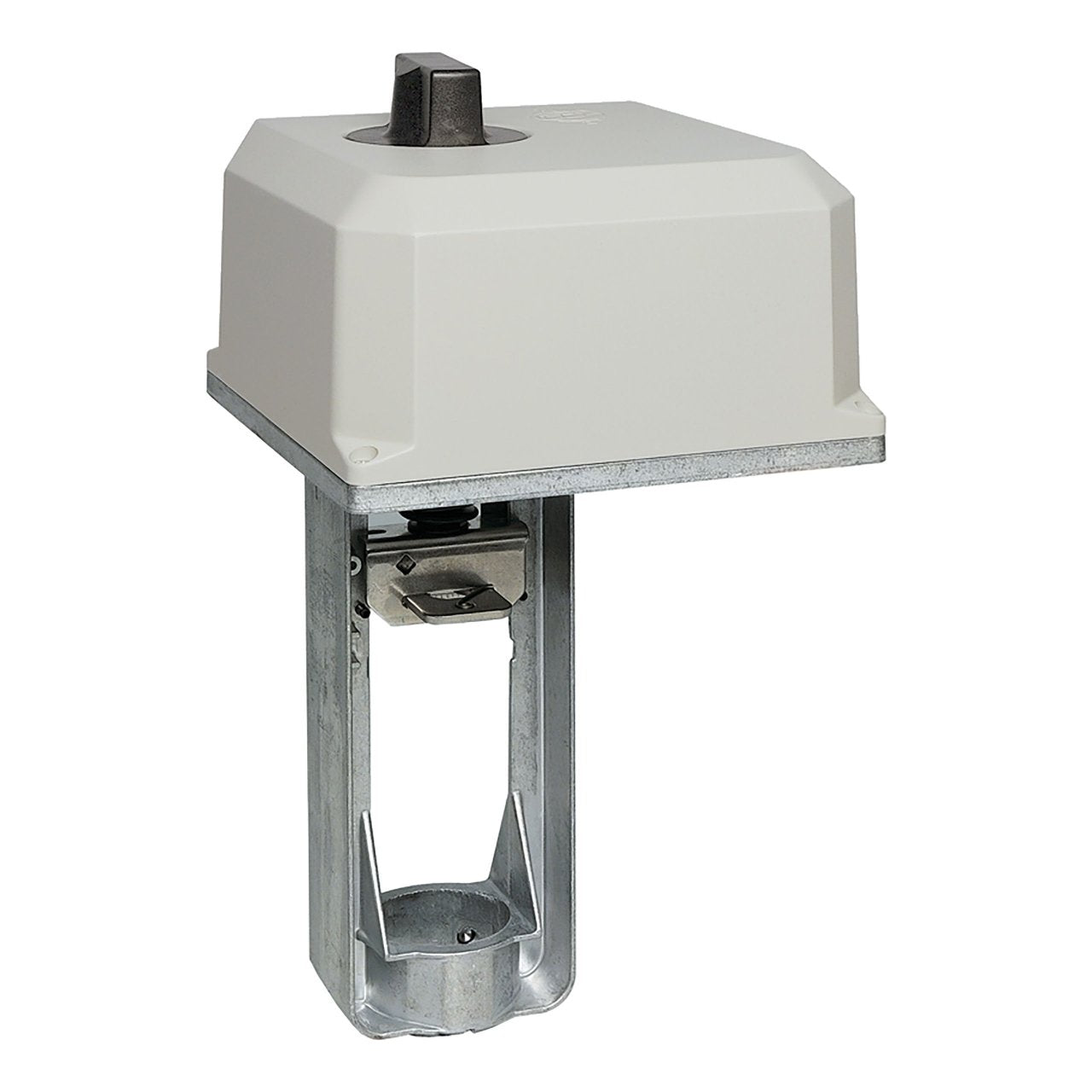

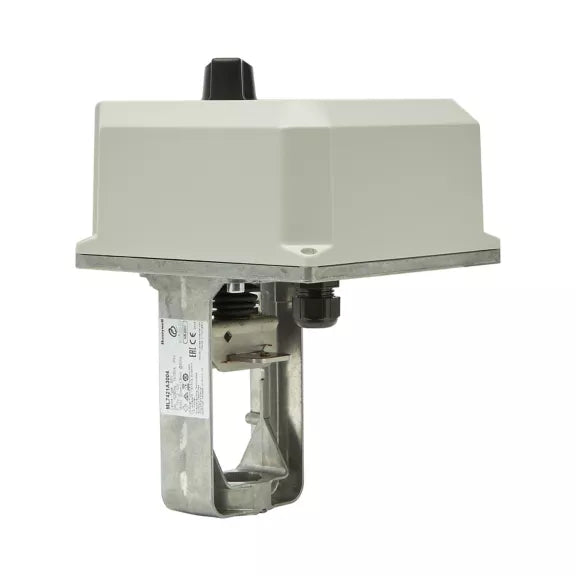

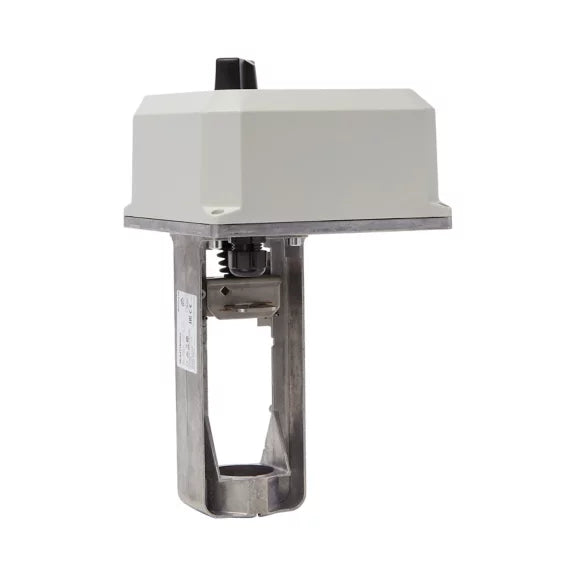

Honeywell ML6421B3004 Actuator 3-pt 38 mm 1800 N 24 Vac

Product Description

The Honeywell ML6421B3004 is an electric actuator designed for floating control. It is suitable for various valve series including DE, XE, DF, and XF. This actuator features a reversible barrel and includes a manual adjuster for ease of use. It effectively controls valve strokes of twenty millimeters and thirty-eight millimeters.

• Compatible with valve series DE, XE, DF, XF, DE/DI, XE/XI, DF/XF
• Includes manual adjuster and reversible barrel
• Works with control valves of DN15 to DN150

Product Highlights

The actuator provides reliable control for HVAC applications that require precision in valve actuation.

Product Information

Standard Information

• Brand: Honeywell
• MPN: ML6421B3004

Technical Specifications

• Force: 1800 N
• Voltage: 24 VAC
• IP Rating: IP 54
• Signal: 3-point signal
• Adjustment: Manual adjustment
• Plug Movement: 38mm
• Open - Close Time: 210 seconds
• Power Consumption: 11 VA
• Operating Conditions: 14 F to 122 F (-10 C to 50 C)
• Electrical Connections: Two case knockouts for 1/2 inch conduit
• Housing: IP54
• Control Signal: Two Position, Floating
• Supply Voltage: 24 VAC
