Honeywell ML6174D2009/U Direct Coupled Actuator 70 lb-in Replacement MPN

Product Description

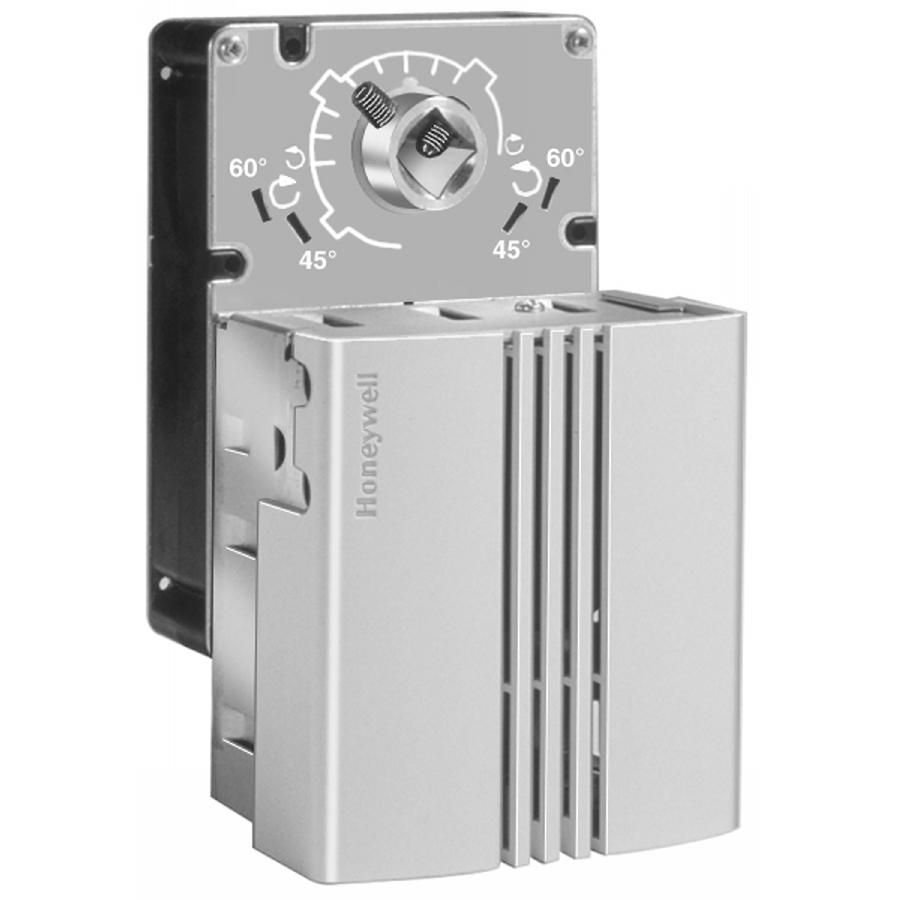

The Honeywell ML6174D2009/U is a direct coupled actuator designed for precise control in HVAC systems. This actuator delivers a torque of seventy pounds per inch, making it suitable for various applications in commercial building controls.

• Non-spring return mechanism
• Operates on 24 VAC power supply
• Floating SPDT configuration

Product Highlights

This actuator provides reliable performance and easy installation.

Product Information

Standard Information

• Brand: Honeywell
• MPN: ML6174D2009/U

Technical Specifications

• Power Consumption: 24 VAC
• Operating Temperature: 20 F to 125 F (-18 C to 50 C)
• Minimum Position Adjustment: 0 to 30 degrees
• Auxiliary Switches: Selective NO or NC
• Wattage Rating: 24 VA
• Feedback Potentiometer: Field-addable on select models
• Declutch Mechanism: Manual declutch on all models
• Housing Style: Round or square shaft
