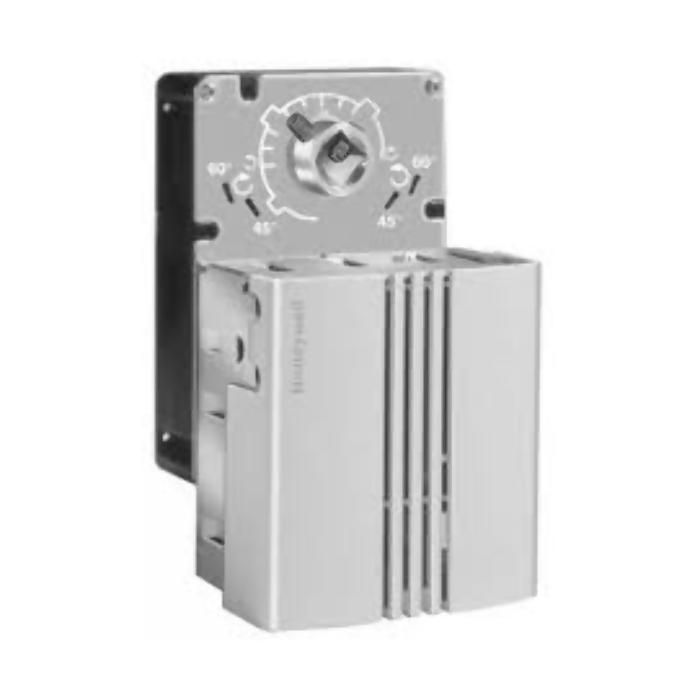

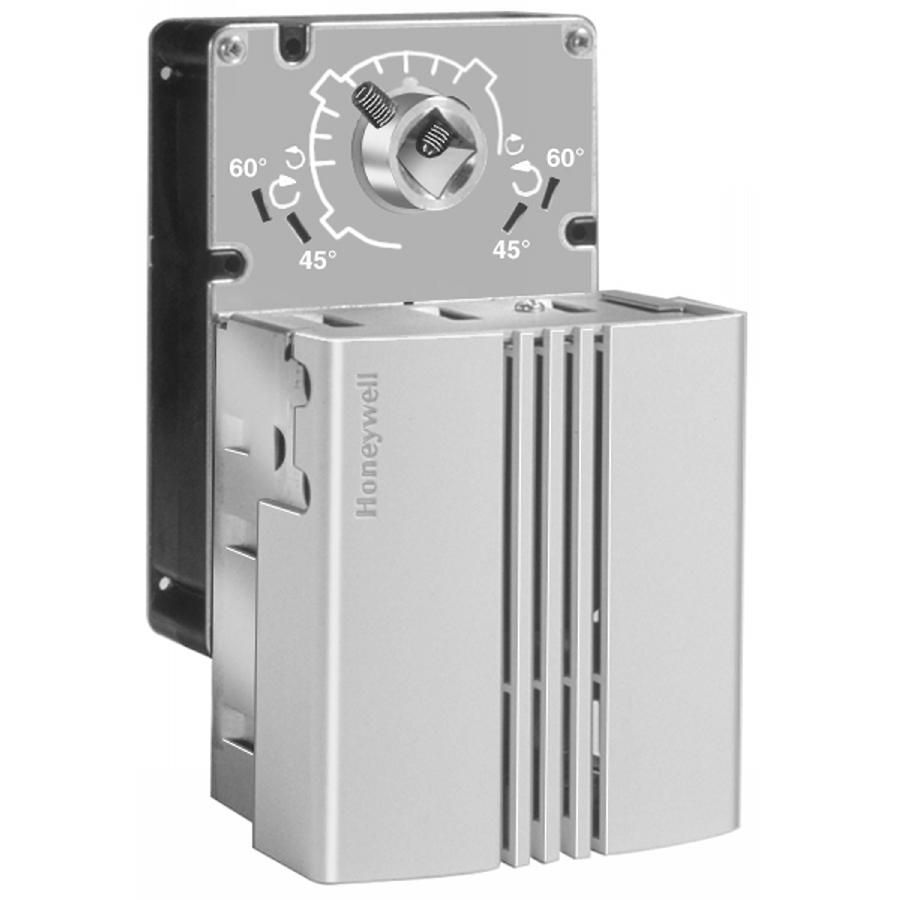

Honeywell ML6161C2015/U Direct Coupled Actuator 35 lb-in

Product Description

The Honeywell ML6161C2015/U is a direct coupled actuator designed for HVAC applications. This non-spring return actuator operates on twenty-four volts alternating current and features a torque rating of thirty-five pound-inches.

• Non-Spring Return Design
• Rated for 24 VAC Power
• Adjustable Minimum Position

Product Highlights

This actuator provides reliable control of damper positions to optimize airflow in HVAC systems. The unit features a magnetic coupling that eliminates the need for mechanical stops, ensuring longevity and efficient operation.

Product Information

Standard Information

• Part Number: ML6161C2015/U
• Brand: Honeywell

Technical Specifications

• Power Consumption: 24 VAC
• Operating Temperature: 20 F to 125 F (-18 C to 50 C)
• Minimum Position Adjustment: 0 to 30 degrees
• Auxiliary Feedback Potentiometer: Field-addable on select models
• Manual Declutch: Available on all models
• Auxiliary Switches: Selective NO or NC, Not simultaneous
• Pilot Duty: 50 VA, 24 VAC
• Switch Differential: Three angular degrees maximum
