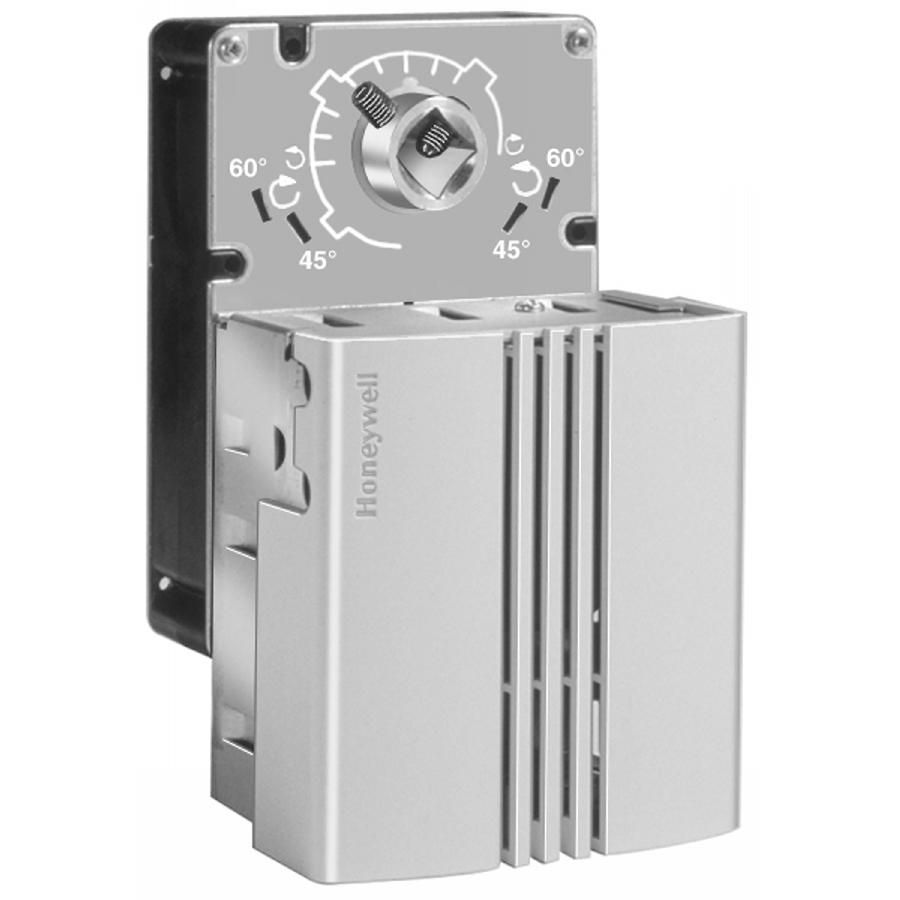

Honeywell ML6161C2007/U Direct Coupled Actuator 35 lb-in

Product Description

The Honeywell ML6161C2007/U is a direct coupled actuator designed for HVAC systems. This actuator operates on 24 VAC and provides a torque of thirty-five pound-inches. The unit does not feature a spring return mechanism, making it ideal for floating control applications.

• Minimum position adjustment from zero to thirty degrees.
• Magnetic coupling that removes the need for mechanical stops.
• Includes manual declutch on all models for manual operation.

Product Highlights

The ML6161C2007/U is suitable for various HVAC applications, serving effectively in both residential and commercial settings.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: ML6161C2007/U

Technical Specifications

• Power Consumption: 24 VAC
• Operating Temperature: 20 F to 125 F (-18 C to 50 C)
• Auxiliary Switches: Selective NO or NC, not simultaneous pilot duty: 50 VA, 24 VAC
• Switch Differential: Three angular degrees maximum
• Style: Dampers and Damper Actuators
• Housing: Round or square shaft
