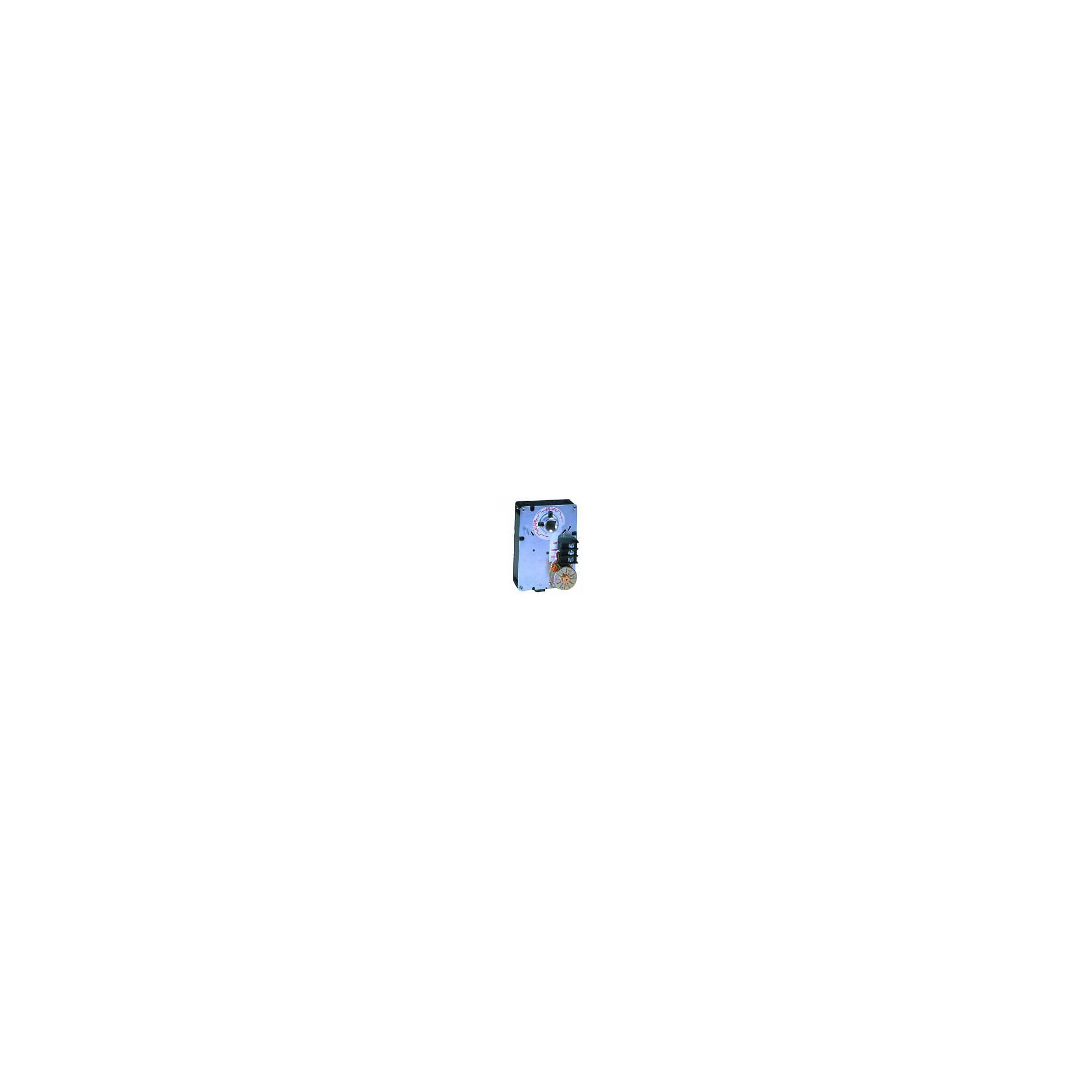

Honeywell ML6161A2009/U Damper Actuator 24 VAC EA

Product Description

The Honeywell ML6161A2009/U is a damper actuator designed for HVAC applications. This actuator features a floating single pole, double throw (SPDT) mechanism suitable for various damper controls in commercial buildings. It operates on 24 volts alternating current, making it versatile for HVAC systems.

• 35 lb.-inch torque rating
• Non-spring return functionality
• Selectable stroke options: 45, 60, and 90 degrees

Product Highlights

This actuator is ideal for managing air flow in systems such as variable air volume (VAV) units and can be mounted on ball valves. It includes a manual declutch lever and is compatible with SPDT or floating thermostats.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: ML6161A2009/U

Technical Specifications

• Weight: 1.63 pounds
• Voltage: 24 VAC
• Cycle/Hertz: 50/60 Hz
• Dimensions: Length 6.1 inches, Width 4.3 inches, Height 4 inches
• UPC: 085267168663
• Country of Origin: MEX
