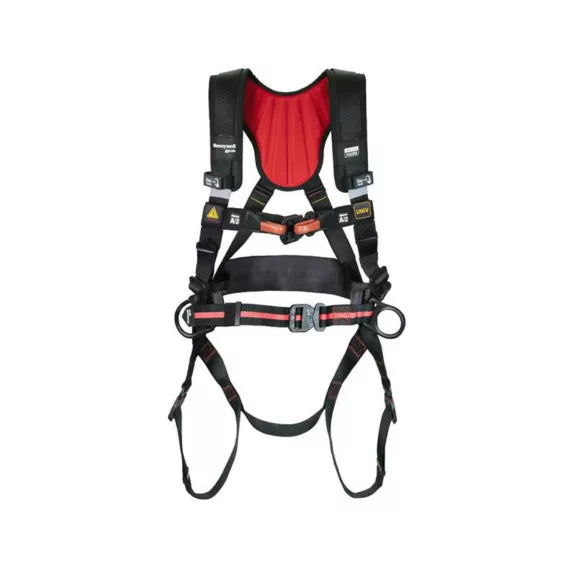

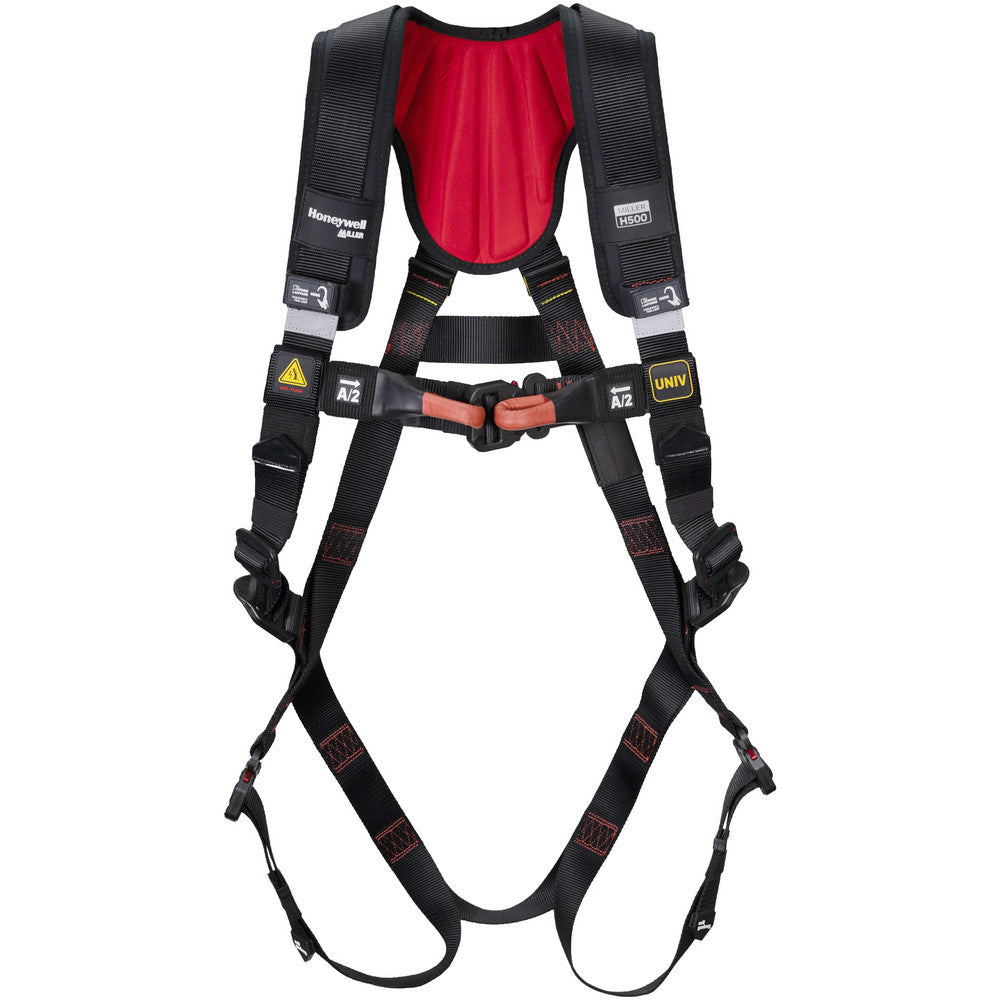

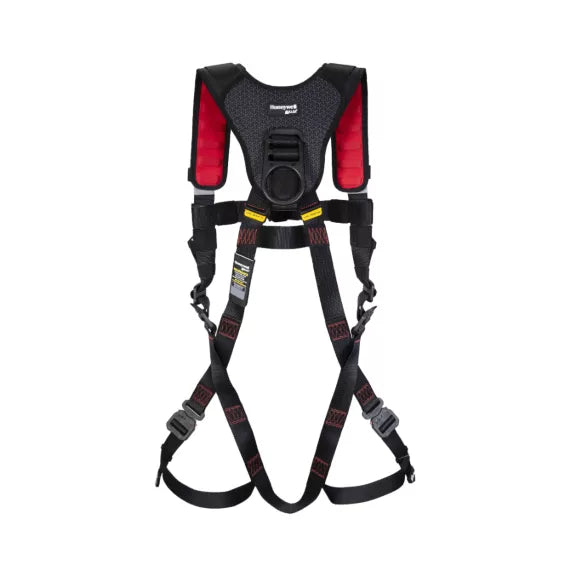

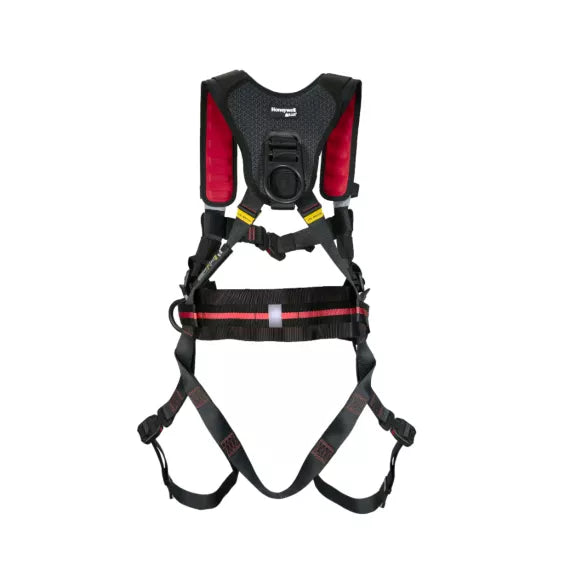

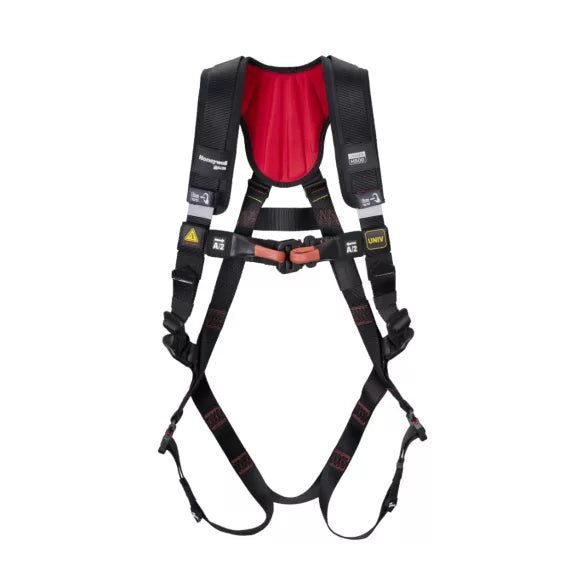

Honeywell Miller H5AFC2S3 H500 Arc Flash Harness, Back D-Rings, 2X-Large, Quick Connect Leg And Chest Buckles

Product Description

The HONEYWELL MILLER H5AFC2S3 H500 Arc Flash Harness is designed with back D-rings and quick connect leg and chest buckles. This 2X-Large, full body harness is constructed from polyamide and suitable for utility, confined space, and wind energy applications. It features removable shoulder padding and user-friendly resettable lanyard keepers.

• Certified to ASTM F887, OSHA 1926.502, ANSI Z359.11-2021, and CSA Z259.10-2018 standards.
• Features a dielectric back D-ring with dedicated SRL web link.
• Maximum worker weight capacity rated OSHA & CSA 420 lb. & ANSI 310 lb

Product Highlights

The Miller H500 Arc Flash harness is designed for professionals in high-risk electrical settings, providing fall protection and durability with flame-resistant webbing.

Product Information

Standard Information

• Brand: HONEYWELL MILLER
• Manufacturer Part Number: H5AFC2S3
• Country of Origin: China

Technical Specifications

• Brand Manufacturer: Honeywell Miller
• MPN: H5AFC2S3
• UOM: ea
• Manufacturer: Honeywell Miller
• Prop 65: No
• UPC Code: 612230305772
• Harness Protection Type: Arc Flash
• Type: Full Body Harness
• Harness Application: Utility; Confined Space; Wind Energy
• Size: 2X-Large
• Number of D-Rings: 1
• D Ring Location: Back
• Harness Style: Arc Flash
• Leg Strap Buckle Type: Quick-Connect
• Shoulder Strap Buckle Type: Mating
• Chest Strap Buckle Type: Quick-Connect
• Harness Material: Polyamide
• Padding: Shoulder Padding
• Side D Rings: No
• Tensile Strength (Lb.): 7000
• Standards: OSHA 1926.502; ASTM F887; ANSI Z359.11-2021; CSA Z259.10-2018 Class A, D, L, P, R
• Series: Miller H500 Arc Flash
• UNSPSC Code: 46182306
• Load Capacity (Lb): 420.000
