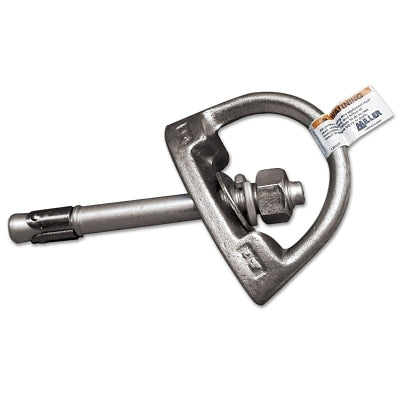

Honeywell Miller 417C D-Bolt Anchor Connector 4 Inch Ring Diameter

Product Description

The Honeywell Miller 417C D-Bolt Anchor Connector is a vital tool for fall protection. Suitable for concrete and grout-filled blocks, this connector is designed for easy and versatile installation.

• Compatible with vertical and overhead mounting.
• Includes a 5/8 inch stud-type expansion anchor.
• Supports a maximum load capacity of 310 pounds.

Product Highlights

Ideal for construction and safety applications requiring reliable fall protection. The Honeywell Miller 417C is designed to ensure secure anchoring.

Product Information

Standard Information

• Brand: Honeywell Miller
• MPN: 417C

Technical Specifications

• Maximum Hole Depth: 4 inches
• Number of Bolts Included: 8
• Weight Capacity: 400 pounds
• Anchor Material: Steel
• Anchor Installation: Permanent
• Tensile Strength: 5,000 pounds
• Attachment Point: D-Ring
• Overall Length: 7 inches
• Width: 1.5 inches
• Hole Diameter: 5/8 inch
• Standards Met: ANSI A10.32, ANSI Z359.1, OSHA 1910.66, OSHA 1926.502
• Ring Diameter: 4 inches
• Country of Origin: United States
• Includes Mounting Hardware: No
