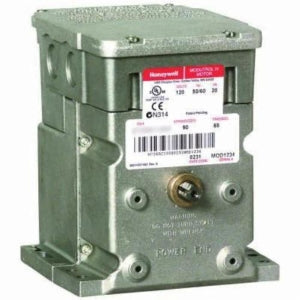

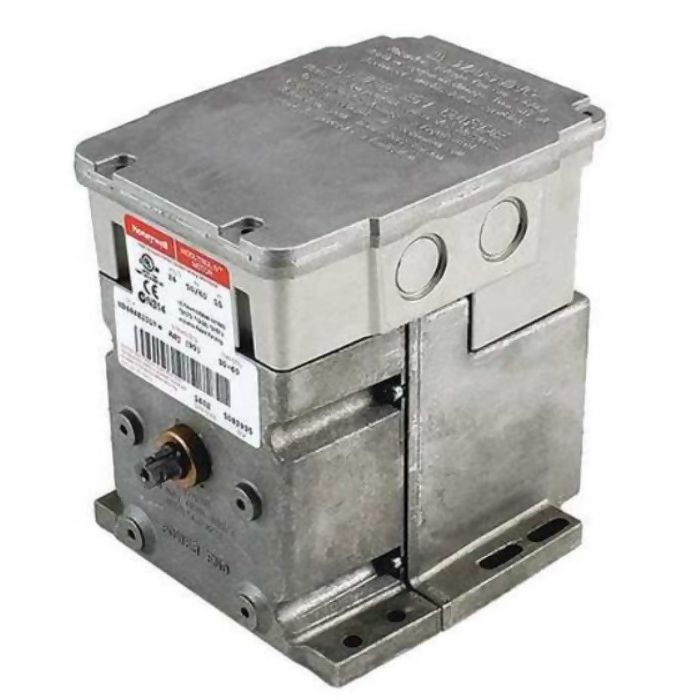

Honeywell M9484E1017/U Modutrol fire rate motor 150 lb-in. 90/160 degree stroke

Product Description

The HONEYWELL M9484E1017/U Modutrol Fire Rate Motor is a 24 VAC unit with a 135 ohm proportional input. This reversing, proportional motor is designed for flame safeguard applications in commercial or industrial oil or gas burner systems, driving firing rate valves, dampers, or auxiliary equipment. It features a 30-second 90-degree stroke and a 60-second 160-degree stroke, with one auxiliary switch and 1-degree settings. The stroke is field-adjustable to 90 or 160 degrees.

• Designed for flame safeguard applications in commercial/industrial oil or gas burner systems.
• Features a vibration resistant electronic drive circuit.
• Regulated by a three-wire proportional controller.

Product Highlights

Field-adjustable stroke for 90 or 160 degrees, suitable for burner firing rate control.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: M9484E1017/U
• Country of Origin: United States

Technical Specifications

• Crank Shaft: Double-Ended, 3/8 in. Square
• Operating Temperature Range: -40 F To 150 F (-40 C To 66 C)
• Product Type: ELECTRIC_MOTOR
• Motor Type: Modutrol IV
• Function: Proportional Flame Safeguard Firing Rate
• Auxiliary Switches: 1
• Torque Rating: 150 lb-in.
• Input Voltage: 24 VAC
• Power Consumption: 15 W
