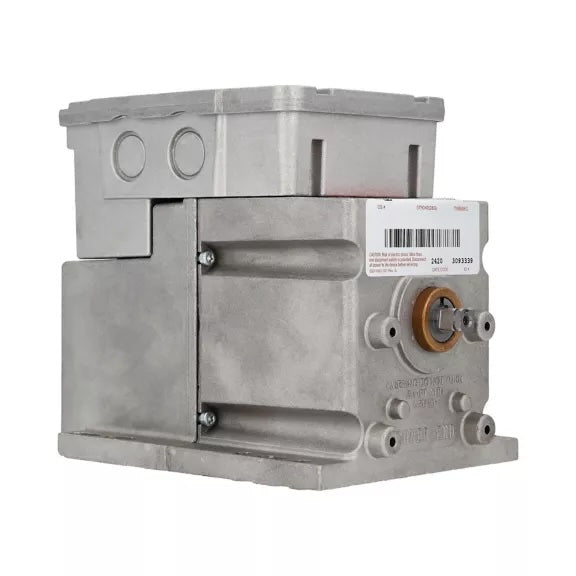

Honeywell M9184D1021/U Modutrol IV Motor Non-Spring Return

Product Description

The Honeywell M9184D1021/U is a Modutrol IV Motor designed for HVAC applications. This motor features a non-spring return mechanism and operates on 24V AC power. With a torque rating of 150 in-lb, it ensures reliable performance for various control tasks.

• Torque Rating: 150 in-lb
• Voltage: 24V AC
• Quick-connect terminals

Product Highlights

The motor can provide proportional control for HVAC systems. Integral junction boxes offer NEMA 3 weather protection when mounted in the upright position. The motor and circuitry function reliably with a power consumption of 15 VA.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: M9184D1021/U

Technical Specifications

• Mount: Foot
• Timing: 15-30 seconds
• Power Consumption: 15 VA
• Operating Conditions: -40°F to 150°F
• Electrical Connections: Quick-Connect Terminals
• Temperature Range: -40°F to 150°F
• Dimensions: 5-1/2 inches W x 7-5/16 inches D x 6-7/16 inches H
• Torque Rating: 17 N-m
