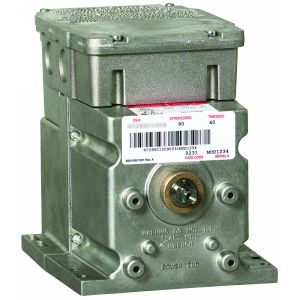

Honeywell M9182A1011/U Modutrol IV Motor, Spring Return

Product Description

The Honeywell M9182A1011/U is a Modutrol IV motor designed for proportional control applications. It features a torque rating of sixty in-pounds and operates on twenty-four volts with a power consumption of twenty VA. The motor includes an integral junction box that provides NEMA 3 weather protection when mounted upright.

• Integral spring return restores motor to normal position during power failure.
• Field adjustable stroke range from ninety to one hundred sixty degrees.
• Quick-connect terminals simplify wiring for easy installation.

Product Highlights

This motor is suitable for HVAC control systems, offering reliable performance under varying conditions, with operation temperatures ranging from minus forty to one hundred fifty degrees Fahrenheit.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: M9182A1011/U

Technical Specifications

• Power Consumption: 20 VA
• Operating Conditions: -40 F To 150 F (-40 C To 60 C)
• Electrical Connections: Quick-Connect Terminals
• Torque Rating: 60 in-lb
• Control Signal Resistance: 135 ohm
• Stroke Adjustment: 90 To 160 Degrees
• Motor Type: Spring Return
• Auxiliary Switch Options: Field addable
