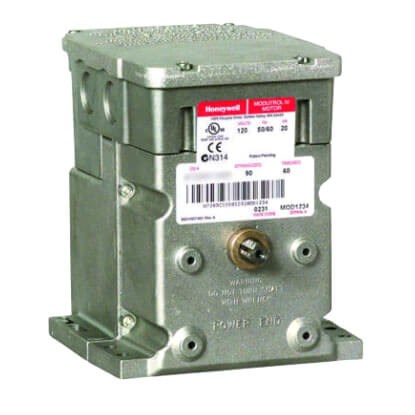

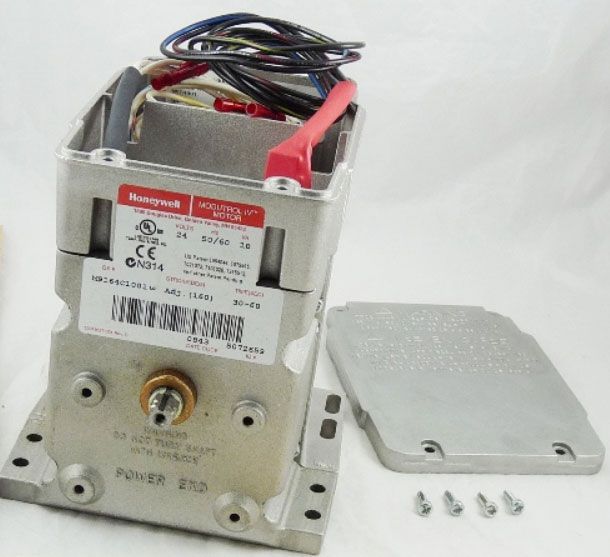

Honeywell M9164C1001 35 lb-in Modutrol IV Motor 24V

Product Description

The Honeywell M9164C1001 is a 35 lb-in Modutrol IV motor operating at 24 volts. This motor is designed for proportional control in HVAC systems. It features dual auxiliary switches and a foot-mounted design for easy installation.

• 35 lb-in torque
• Dual auxiliary switches
• 24V operation

Product Highlights

This Honeywell Modutrol IV motor is a non-spring return, foot-mounted actuator with dual auxiliary switches. It provides accurate control for dampers or valves in HVAC systems.

Product Information

Standard Information

• Brand: Honeywell
• Model: M9164C
• MPN: M9164C1001

Technical Specifications

• Torque: 35 lb-in
• Voltage: 24V
• Control Signal: Proportional
• Fail Safe Mode: Non-Spring Return
• Mount: Foot-mounted
• Timing: 30-60 seconds
• Weight: 7.5 lbs
• Shaft: Dual ended
• Shaft Adjustment: 90 to 160 degrees
• Auxiliary Switches: Yes, factory mounted
• Temperature Range: -40°F to 150°F
• Shaft Rotation: Clockwise (normally closed)
• Electrical Connections: Quick Connect Terminals
