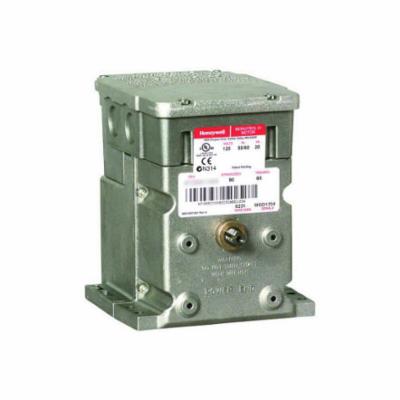

Honeywell M9164A1005/U Electric Motor 120 VAC 50/60Hz 90 Deg Stroke Transformer

Product Description

Honeywell Modutrol IV Electric Motor, MPN: M9164A1005/U, operates at 120 VAC and provides reliable performance for HVAC systems. This motor features a NEMA 3 frame and is designed for controlling valves and dampers in various applications.

• Integral junction box for weather protection
• Spring return feature returns motor to normal position when power is cut
• Fixed torque across the voltage range

Product Highlights

Utilize this motor for modulating control in heating and cooling systems.

Product Information

Standard Information

• Manufacturer: Honeywell
• Manufacturer Part Number: M9164A1005/U

Technical Specifications

• Amperage Rating: 7.2 FLA/43.2 A Locked Rotor
• Dimensions: 5-1/2 in W x 7-5/16 in D x 6-7/16 in H
• Frame: NEMA 3
• Frequency Rating: 50/60 Hz
• Includes: Transformer
• Material: Die Cast Aluminum
• Mounting Type: Footed
• Rotation: CCW
• Series: M9164
• Shaft Size: 3/8 in
• Standards/Approvals: Guide No XAPX For USA and Canada|CE EN55011 (Emission)|EN50082-2 (Immunity) 73/23/EEC (LVD)|UL E4436
• Temperature Rating: -40 to 150 deg F Ambient at 25% Duty Cycle
• Torque Rating: 35 in-lb
• Voltage Rating: 120 VAC
