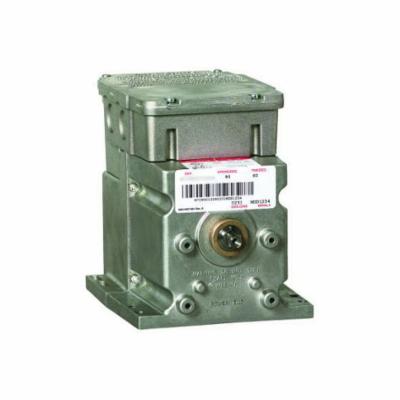

Honeywell M8185D1006/U Electric Motor 24 VAC 50/60 Hz NEMA 3 Frame

Product Description

The Honeywell Modutrol IV M8185D1006/U Electric Motor operates at twenty-four volts alternating current and works with fifty or sixty hertz frequency. It features a NEMA three frame design and is ideal for various HVAC applications.

• Integral spring return returns motor to normal position when power is interrupted.
• Fixed torque of sixty inch-pounds for reliable performance.
• Footed mounting provides stability during operation.

Product Highlights

This model is designed for either normally closed or normally open valve applications, allowing flexibility in installation and use.

Product Information

Standard Information

• Manufacturer: Honeywell
• MPN: M8185D1006/U

Technical Specifications

• Dimensions: 5-1/2 inches W x 8-3/4 inches D x 6-7/16 inches H
• Frame: NEMA 3
• Frequency Rating: 50/60 Hz
• Material: Die Cast Aluminum
• Mounting Type: Footed
• Rotation: Counter-clockwise
• Series: M8185
• Shaft Size: 3/8 inches
• Temperature Rating: -40 to 150 degrees Fahrenheit
• Torque Rating: 60 inch-pounds
• Voltage Rating: 24 VAC
