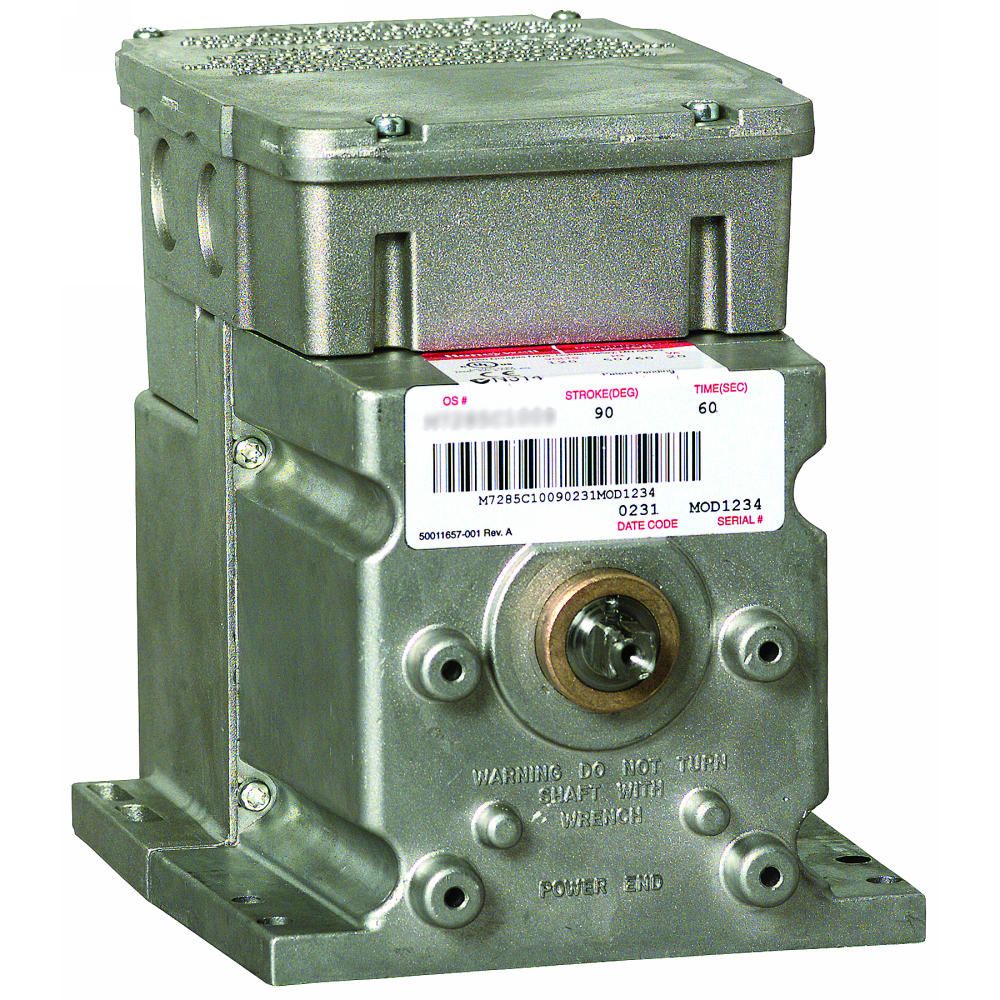

Honeywell M7685A1025/U Modutrol IV Motor, Spring Return

Product Description

The Honeywell Modutrol IV Motor M7685A1025/U is a robust actuator designed for controlling valves and dampers in HVAC systems. This motor is built for modulating applications and operates at a torque rating of sixty inch-pounds. It functions on twenty-four volts and requires twenty VA of power. Users can control it with a voltage range of fourteen to seventeen VDC, making it a versatile component for various applications.

• Integral junction box provides NEMA 3 weather protection when mounted upright.
• Spring return feature ensures the motor returns to its normal position in case of power loss.
• Dual shafts allow for flexibility in installation, accommodating both normally open and normally closed configurations.

Product Highlights

This motor offers field-adjustable stroke from ninety to one hundred sixty degrees, making it suitable for diverse operational needs.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: M7685A1025/U

Technical Specifications

• Torque Rating: 60 in-lb
• Power Consumption: 20 VA
• Operating Conditions: -40 F to 150 F (-40 C to 60 C)
• Electrical Connections: Quick-Connect terminals
• Style: Dampers and Damper Actuators
• Housing: NEMA 3
