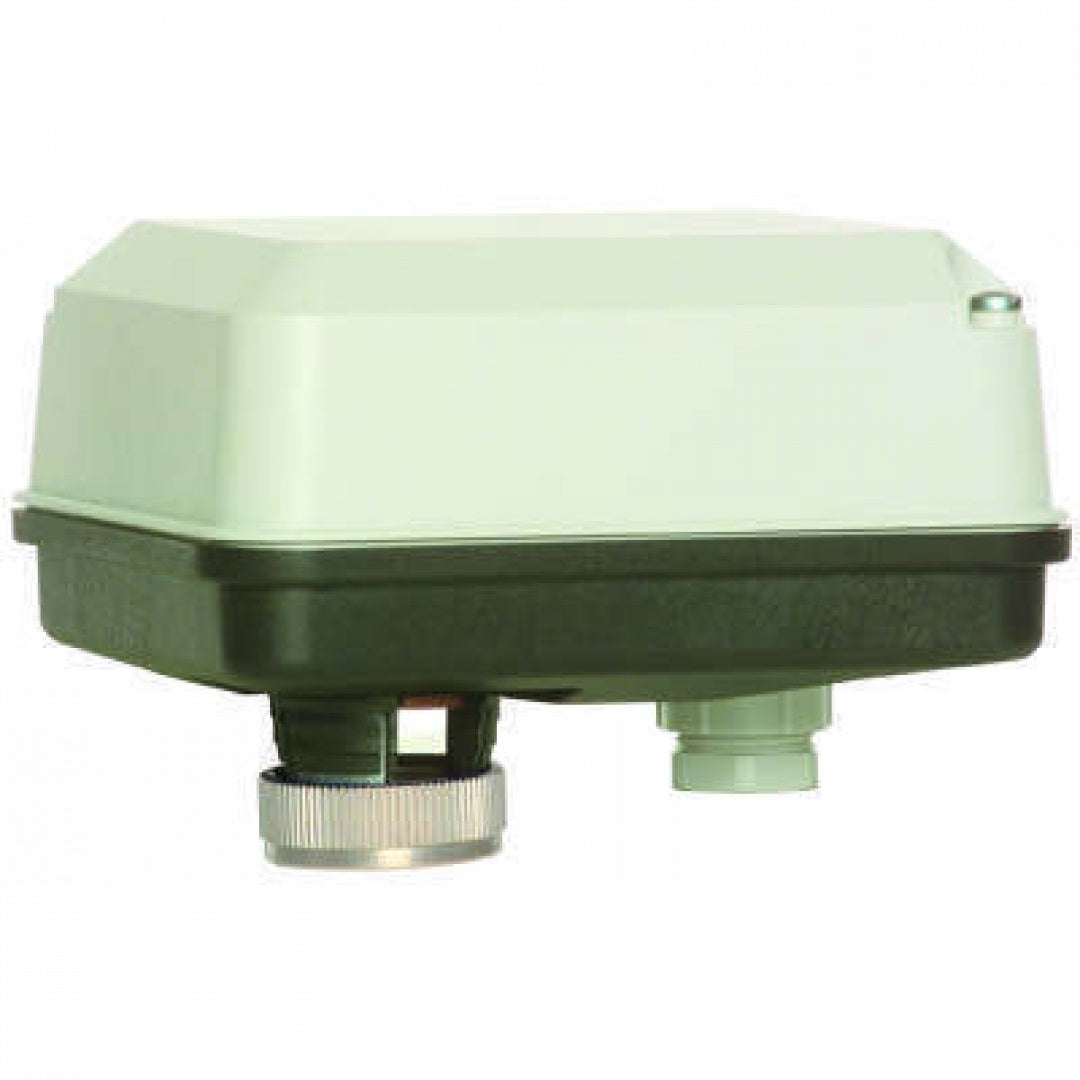

HONEYWELL M7435F3007 Spring Return Valve Actuator 24V SR Modulating

Product Description

The Honeywell M7435F3007 is a spring return valve actuator designed for modulating control of V5800 series cartridge globe valves, featuring a direct/reverse acting switch and a drive timing of 50 seconds.

• Supports 1 inch to 1-1/2 inch valve sizes.
• Designed for dependable HVAC applications.
• Efficient 24V power supply.

Product Highlights

This actuator is equipped with a modulating control signal that enhances its precision and reliability in regulating valve operations. The spring return ensures fail-safe operation, retracting the stem upon power loss.

Product Information

Standard Information

• Brand: Honeywell
• Compatible with: V5800 series cartridge globe valves

Technical Specifications

• Control Signal: 0 to 10 Vdc or 2 to 10 Vdc
• Fail-Safe Mode: Spring return, normally open for 1/2 inch and 3/4 inch valves and normally closed for other sizes
• Power Supply: 24 Vac (+20%, -15%)
• Mounting: Threads directly onto valve bonnet
• Electrical Connection: Screw terminals
• Environmental Class: IP54, Class I insulation
• Humidity Range: 5% to 95% non-condensing
