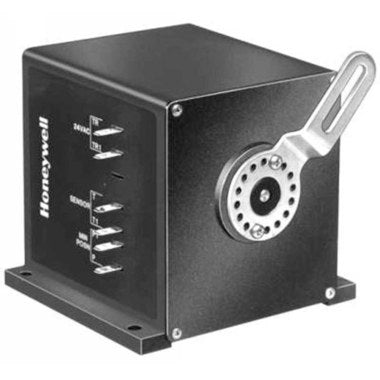

Honeywell M7415A1006/U Economizer Damper Actuator Spring Return

Product Description

The Honeywell M7415A1006/U is an economizer damper actuator designed for efficient control in HVAC systems. This actuator features a torque rating of twenty-five inch-pounds and operates on twenty-four volts alternating current. It is suitable for use in both residential and commercial applications.

• Quiet high efficiency synchronous motor
• Spring returns motor shaft to normal position in case of power failure
• Rugged, lightweight, corrosion resistant plastic case

Product Highlights

The M7415A1006/U is an ideal choice for regulating airflow through economizer systems, ventilation dampers, and combustion air dampers.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: M7415A1006/U

Technical Specifications

• Torque Rating: 25 lb-in.
• Power Consumption: 8 VA driving, 5 VA holding
• Operating Conditions: -25 F to 125 F
• Electrical Connections: Quick-connect terminals
• Dimensions: Four and a half inches high x five inches wide x five and three-sixteenths inches deep
• Weight: 3 lb
• Material: UL94-5V plastic housing
• Humidity Range: 5 to 95% RH, non-condensing
