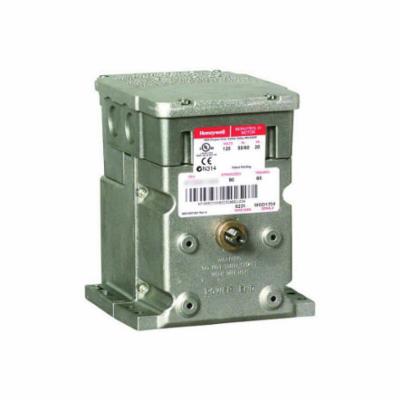

Honeywell M7294Q1007/U Modutrol IV Motor Non-Spring Return

Product Description

The Honeywell Modutrol IV Motor, part number M7294Q1007/U, is designed to control dampers and valves. This electric motor operates at a voltage of 120 VAC and is suitable for various HVAC applications. It features a torque rating of three hundred in-pounds and a timing cycle of thirty to sixty seconds, providing reliable operation for your needs.

• Integral junction box provides NEMA 3 weather protection when mounted upright
• Dual shafts (slotted and tapped on both ends) for versatile use
• Spring return mechanism restores motor to its normal position in case of power failure

Product Highlights

The Modutrol IV Motor is ideal for controlling dampers in heating and cooling systems, offering dependable performance across a temperature range of negative forty to one hundred fifty degrees Fahrenheit.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: M7294Q1007/U

Technical Specifications

• Housing: Die-Cast Aluminum
• Power Consumption: 15 VA
• Auxiliary Switches: 2
• Temperature Range: -40°F to 150°F
• Operating Conditions: -40°F to 150°F
• Electrical Connections: Screw Terminals
• Torque Rating: 300 in-lb
• Dimensions: 5-1/2 in W x 7-5/16 in D x 6-7/16 in H
