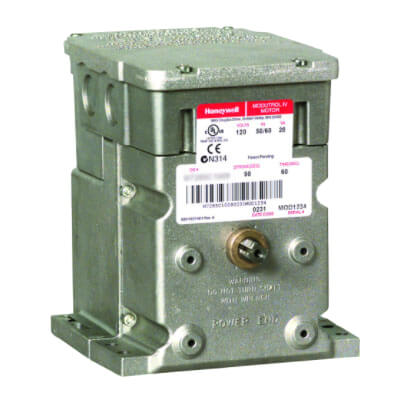

Honeywell M7286G1009 24V Spring Return Foot Mounted Actuator 60 lb-in Torque

Product Description

The Honeywell M7286G1009 is a spring return foot mounted actuator designed for controlling dampers and valves. This actuator operates on twenty-four volts and features a torque of sixty pound-inches. It integrates effectively with various HVAC systems.

• Integral spring return mechanism ensures the motor returns to a normal position when power is lost.
• Durable die-cast aluminum housing provides reliable protection against the elements.
• Field adjustable stroke ranging from ninety to one hundred sixty degrees allows for versatile installation.

Product Highlights

This actuator is suitable for applications needing precise control of dampers and valves in HVAC settings.

Product Information

Standard Information

• Manufacturer: Honeywell
• MPN: M7286G1009

Technical Specifications

• Application Type: Electric
• Fail Safe Mode: Spring Return
• Control Signal: Modulating, 2-10 Vdc
• Motor Shaft: Dual ended
• Stroke: Adjustable; 90 to 160 degrees
• Frequency: 50 Hz, 60 Hz
• Power Consumption: 15 VA
• Shaft Dimensions: 0.375 inches
• Mounting: Foot-mounted
• Temperature Range: -40 to 150 degrees Fahrenheit
• Deadweight Load on Shaft: 200 lbs (Either End), 300 lbs (Combined)
• Auxiliary Switch Ratings: AFL - 120 Vac: 7.2A, AFL - 240 Vac: 3.6A, ALR - 120 Vac: 43.2A, ALR - 240 Vac: 21.6A
