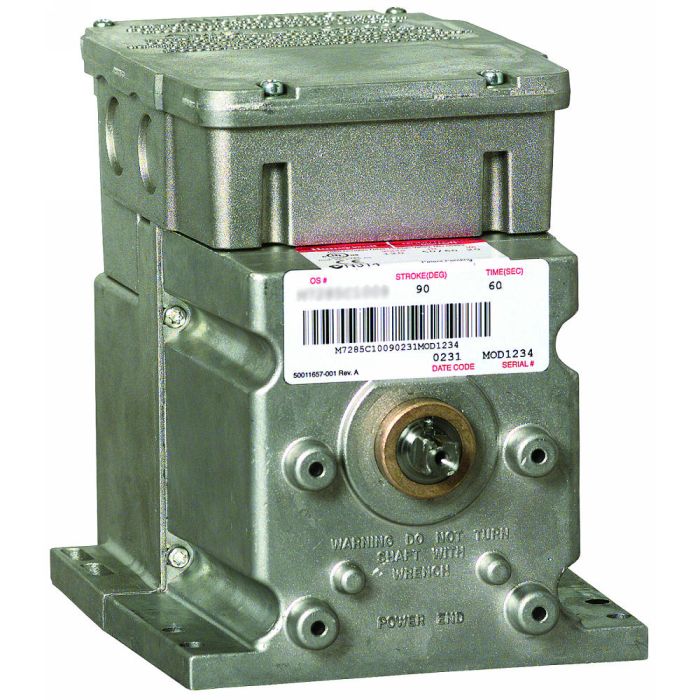

Honeywell M7285C1009/U Modutrol IV Motor Spring Return

Product Description

The Honeywell M7285C1009/U is a Modutrol IV motor designed for HVAC applications. It features a spring return operation for reliable functionality in various controls. This actuator is suitable for use with dampers and valves, providing precise position control.

• Spring return function maintains position during power failure
• Integral junction box offers NEMA 3 weather protection
• Compatible with normally open or normally closed configurations

Product Highlights

This motor operates with a control signal of 4-20 mA and has a torque rating of 60 in-lb, making it effective for applications requiring durable performance.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: M7285C1009/U

Technical Specifications

• Voltage Rating: 120 VAC
• Power Consumption: 20 VA
• Operating Conditions: -40 F to 150 F (-40 C to 60 C)
• Auxiliary Switches: 2
• Shaft Size: 3/8 inch
• Dimensions: 5-1/2 inches W x 8-3/4 inches D x 6-7/16 inches H
• Weight: 10.000 lbs
