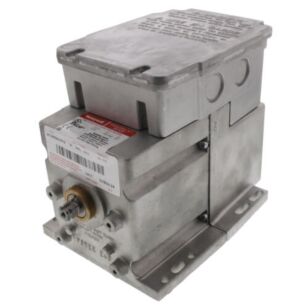

Honeywell M7285A1003/U Modutrol IV Motor, Spring Return

Product Description

The Honeywell Modutrol IV motor, M7285A1003/U, is a reliable spring return actuator designed for HVAC control systems. It features a torque rating of sixty in-pounds and operates on 120 volts with a power consumption of twenty volt-amperes. This model utilizes modulating control with a 4-20 mA control signal. A transformer is included to support its operation.

• Integral junction box offers NEMA 3 weather protection.
• Quick-connect terminals are standard; screw terminal adapter is available.
• Field adjustable stroke from ninety to one hundred sixty degrees.

Product Highlights

This actuator is suitable for use with normally open or normally closed valves and dampers. An integral spring mechanism returns the motor to its default position in case of power failure. The dual shafts allow for flexibility in installation.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: M7285A1003/U

Technical Specifications

• Mount: Foot
• Housing: Die-Cast Aluminum
• Timing: 30-60 Seconds
• Wiring: Screw Terminals
• Power Consumption: 20 VA
• Temperature Range: -40°F to 150°F
• Operating Conditions: -40°F to 150°F (-40°C to 60°C)
• Electrical Connections: Screw Terminals
