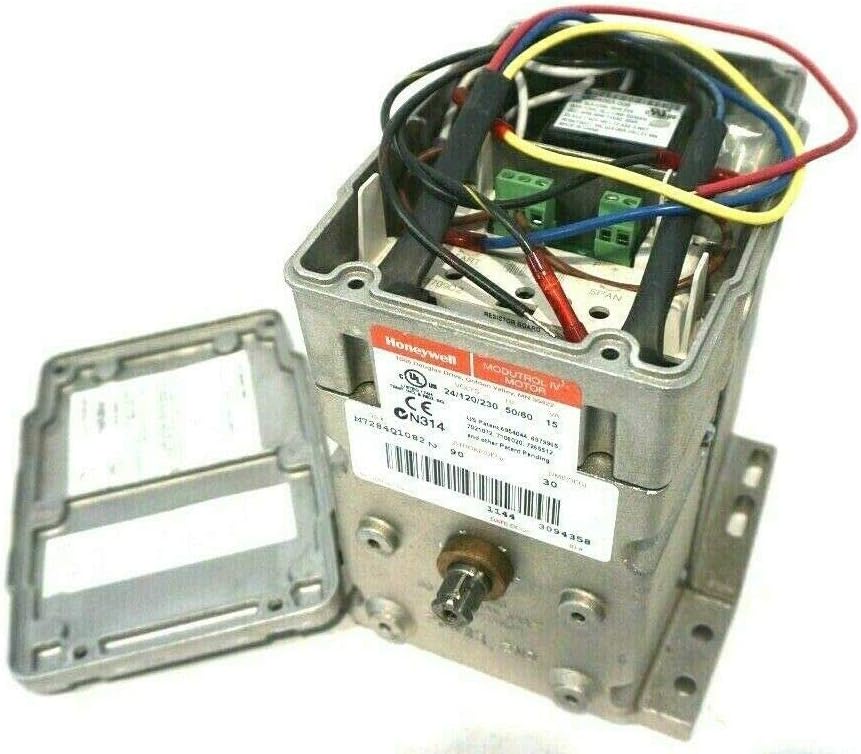

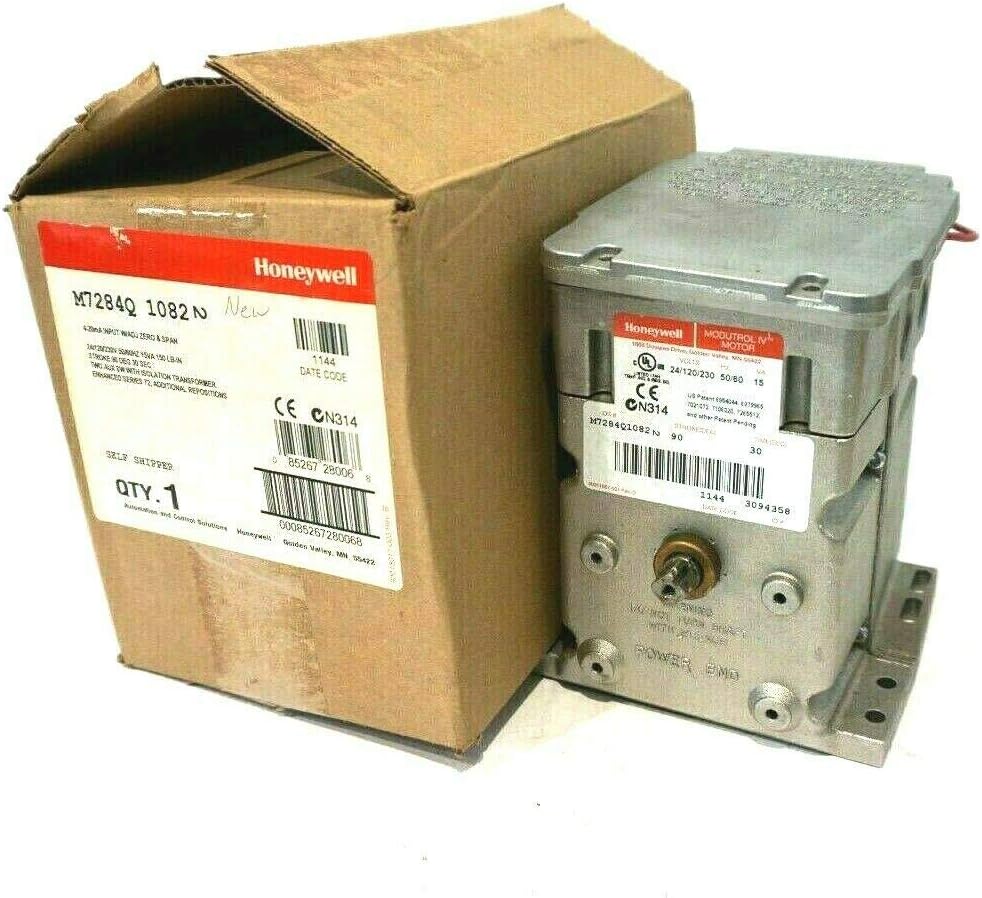

Honeywell M7284Q1082 Motor 24V 150 lb-in Torque Modulating Control 4-20mA Non-Spring Return

Product Description

The Honeywell M7284Q1082 Modutrol IV Motor is designed for precise control of dampers and valves in HVAC systems. This motor operates with a 4-20mA control signal and features a non-spring return mechanism, providing reliable functionality in various settings.

• Designed for modulating control of building HVAC dampers and valves.
• Features dual-ended shaft for flexible installation.
• Resilient die-cast aluminum housing ensures durability.

Product Highlights

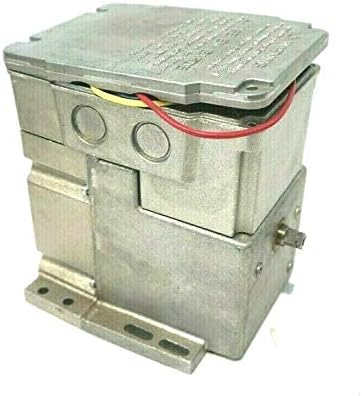

This Modutrol IV Motor offers 150 lb-in of torque and operates on 24 Volts. It features foot-mounted design for stable installation. The product includes two internal auxiliary switches and adapable stroke settings ranging from 90 to 160 degrees.

Product Information

Standard Information

• Control Signal: Modulating, 4-20 mA
• Power Source: Battery Powered, 24 Volts
• Fail Safe Mode: Non-Spring Return

Technical Specifications

• Frequency: 50/60 Hz
• Maximum Torque: 150 lb-in
• Temperature Range: -40 to 150 degrees Fahrenheit
• Auxiliary Switch Ratings: AFL - 120 Vac: 7.2A, AFL - 240 Vac: 3.6A
• Dimensions: 6 7/16 in. high x 5 1/2 in. wide x 8 3/4 in. deep
• Weight: 7.65 pounds
