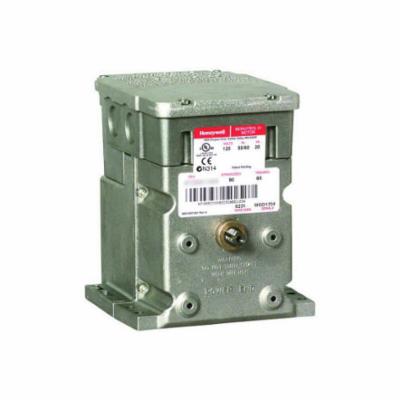

Honeywell M7284Q1009/U Motor Modutrol Actuator 90 Degree Adjustable 2 Auxiliary Switch Zero and Span 150 LB-IN 120 Volt 30 Second 50-60 Hertz 4 to 20 mA

Product Description

The Honeywell M7284Q1009/U is a Modutrol actuator designed for precise motor control in various applications. This motor operates at one hundred twenty volts, providing efficient performance with a torque of one hundred fifty pound-inches. With an adjustable angle of ninety degrees, this actuator features dual auxiliary switches for zero and span adjustment. It is widely used in HVAC systems, power plants, and manufacturing facilities.

• Power: 120 Volt
• Speed: 30 Seconds
• Torque: 150 LB-IN

Product Highlights

This Honeywell Modutrol actuator is a reliable choice for controlling dampers and valves due to its robust construction and adjustable features.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: M7284Q1009/U

Technical Specifications

• Voltage: 120V
• Frequency: 50-60 Hz
• Amperage: 4 to 20 mA
• Dimensions: 5-1/2 inches W x 7-5/16 inches D x 6-7/16 inches H
• Weight: 4.000 lbs
• Shaft Size: 3/8 inches
• Rotation: CCW
• Standards/Approvals: Guide No XAPX For USA and Canada|CE EN55011 (Emission)|EN50082-2 (Immunity) 73/23/EEC (LVD)|UL E4436
