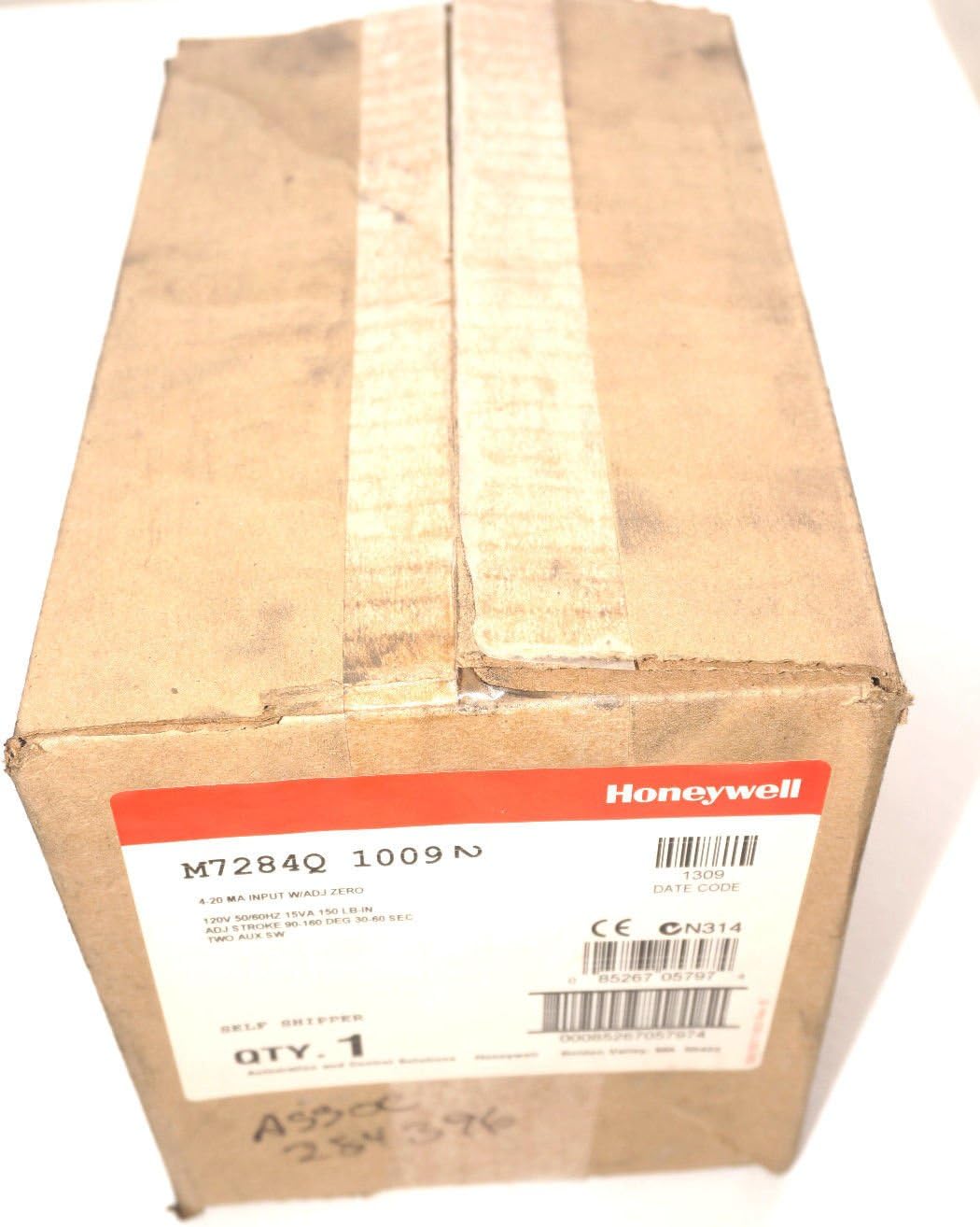

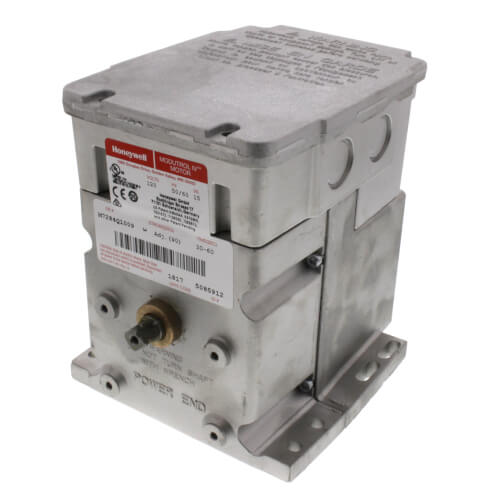

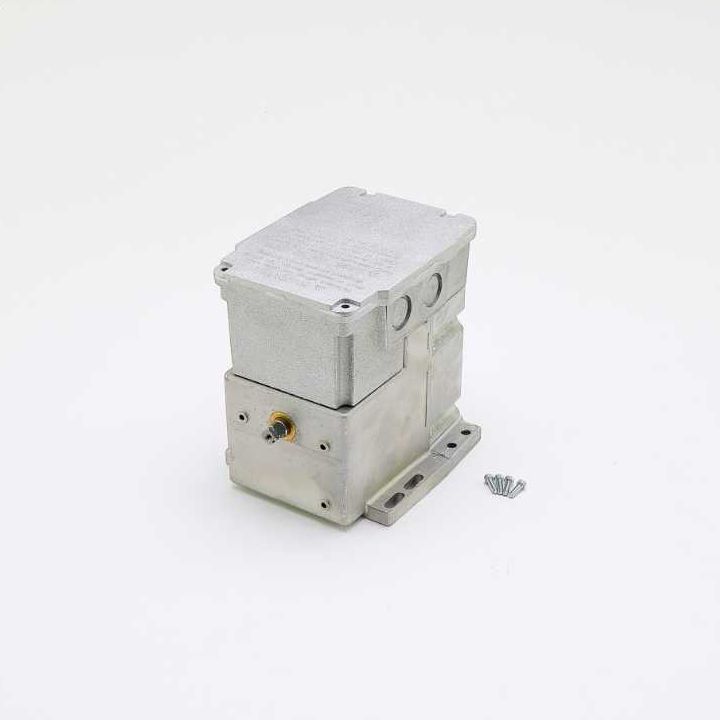

Honeywell M7284Q1009 120V Non-Spring Return Actuator 150 lb-in Torque

Product Description

The Honeywell M7284Q1009 is a high-performance 120V non-spring return actuator designed for precise control of valves and dampers in industrial settings. This actuator is engineered to deliver dependable performance with a torque of 150 lb-in and a 90-degree adjustable stroke.

• Efficient operation with 30-second timing and rack mounted form factor.
• Dual-ended shaft for versatile installation options.
• Integral junction box offers NEMA 3 weather protection.

Product Highlights

Suitable for HVAC systems, process controls, and manufacturing applications. The compact design allows installation in limited spaces, ensuring high torque operation where needed. The actuator features easy connectivity with quick-connect terminals and potential for multiple control signals, including 4-20 mA.

Product Information

Standard Information

• Brand: Honeywell
• MPN: M7284Q1009

Technical Specifications

• Power: 120 Volts
• Stroke Adjustment: 90 to 160 degrees
• Control Signal: 4-20 mA
• Mounting Type: Foot-mounted
• Dimension: 10.63 x 6.3 x 8.27 inches
• Weight: 8.15 pounds
