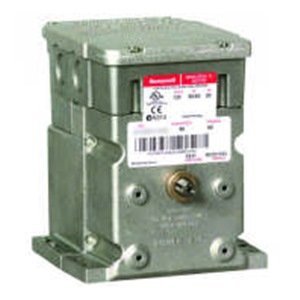

Honeywell M7284C1091 24/120/230V Non-Spring Return Foot Mounted Actuator 150 lb-in

Product Description

The Honeywell M7284C1091 is designed for controlling dampers and valves. This actuator operates at 24, 120, and 230 volts, making it versatile for various HVAC applications. The motor provides reliable performance without a spring return. It delivers a torque of 150 lb-in, suitable for multiple industrial and commercial uses.

• Voltage Ratings: 24, 120, and 230V
• Torque: 150 lb-in
• Foot-mounted design for easy installation

Product Highlights

This actuator is equipped with two internal auxiliary switches, providing additional control options. It features a dual-ended shaft and is built to function in a temperature range of negative forty to one hundred fifty degrees Fahrenheit.

Product Information

Standard Information

• Brand: Honeywell
• MPN: M7284C1091

Technical Specifications

• Application Type: Electric
• Fail Safe Mode: Non-Spring Return
• Control Signal: Modulating, 4-20 mA
• Motor Shaft: Dual ended Shaft
• Stroke: Fixed; 160 degrees, Asymmetrical
• External Auxiliary Switches Available: Yes
• Frequency: 50 Hz, 60 Hz
• Power Consumption Driving (VA): 15 VA
