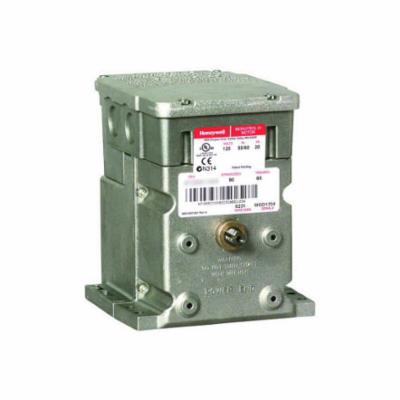

Honeywell M7284A1038/U Modutrol IV Motor, Non-Spring Return

Product Description

The Honeywell M7284A1038/U is a Modutrol IV motor designed for HVAC systems. It operates on 120 volts and provides a torque rating of 75 in-lb. This motor is ideal for controlling dampers and valves in heating and cooling applications.

• Integral junction box offers NEMA 3 weather protection.
• Spring return functionality for reliable operation during power outages.
• Field adjustable stroke from ninety to one hundred sixty degrees.

Product Highlights

The M7284A1038/U Modutrol IV motor features quick-connect terminals, dual shafts, and is available with auxiliary switches for enhanced functionality.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: M7284A1038/U

Technical Specifications

• Power Consumption: 15 VA
• Operating Conditions: -40°F to 150°F (-40°C to 60°C)
• Electrical Connections: Screw terminals
• Housing: Die-Cast Aluminum
• Dimensions: 5-1/2 inches W x 7-5/16 inches D x 6-7/16 inches H
• Torque Rating: 75 in-lb
• Voltage Rating: 120 VAC
• Frequency Rating: 50/60 Hz
